GMC Machine Tools Corp. is a manufacturer of GMC fabrication equipment and metalworking machinery.


GMC Machine Tools Corp. is a manufacturer of GMC fabrication equipment and metalworking machinery.


Multiple unit sizes and variations available upon request.






NEW GMC PL-18E, 18 GA. PITTSBURGH MACHINE | LOCK FORMING MACHINE NEW GMC PL-18E, 18 GA. PITTSBURGH MACHINE | LOCK FORMING MACHINE
NEW GMC PL-18E, 18 GA. PITTSBURGH MACHINE | LOCK FORMING MACHINE
$0.00

NEW GMC PL-18E, 18 Ga. Pittsburgh Machine | Lock Forming Machine

ISO 9001 certified 3HP Heavy Duty AC main motor, 220V, 3 phase Heavy welded all steel construction for maximum rigidity It’s a Triplex, standard rolls include S & Drive (Slip & Drive Cleat), Drive Cleat, Double Seam, Pittsburgh Lock, Power Flanger, 5 in 1, all rolls are installed. Heavy welded all steel construction for maximum rigidity ACME side can be operated at same time

Standard Pittsburgh Attachment # PA-18E, installed Slip & Drive Roll (S & Drive)# SDR-18E , installed Drive Cleat Roll # DCR-18E, installed Double Seam Roll # DSR-18E, installed Power Flanger # PF-18E, installed

Right Angle Roll # RAR-18E, ¼"” | 3/8” & ½” - call for pricing Optional Die for 1/2” hem- call for pricing Digital Inverter Drive control box for converting to PL-18E-1phase, add - call for pricing

Capacity:

Pittsburgh Lock 26 Ga. - 18 Ga. S Drive Lock 26 Ga. - 20 Ga. Right Angle Lock 26 Ga. - 20 Ga. Drive Cleat Lock 26 Ga. - 18 Ga. Double Seam Lock 26 Ga. - 18 Ga. Power Flange 1/4:

26 Ga. - 20 Ga. Depth of Pocket 1/2" Feeding Speed 23 FPM Main Motor 3 HP, 3 Phase 10 AMP Prewired:

220VAC 220V, 1phase is optional Weight Approx 998 LBS Machine Dimensions (LxWxH):

Shipping Dimensions:

60"x26"x46" 63"x27"x48"





NEW GMC ELECTRO MECHANICAL SHEAR EPS-1016E SHEAR NEW GMC ELECTRO MECHANICAL SHEAR EPS-1016E SHEAR
NEW GMC ELECTRO MECHANICAL SHEAR EPS-1016E SHEAR
$0.00

GMC ELECTRO MECHANICAL SHEAR EPS-1016E SHEAR

36” front operated power back gauge with German SIKO digital readout & fine adjustment wheel

60” long squaring arm with inch / mm scale, mounted on right side of the table

With material front out tray

Rear lifting support for thin sheet metal

2 each 24” front support arms

full length finger guard

Removable safety foot pedal control

One set of upper & lower blades

ISO 9001 certified

American design and Taiwan quality machine

With material front out tray

HD all steel construction for maximum rigidity

Precision driven gearbox

Full length 26 strokes per minute

60” long squaring arm with inch / mm scale

Spring hold-downs

High grade carbon/chrome alloy steel blades and hardened to 62 HRC

2-edge indexable upper blade and 4-edge indexable bottom blade

Full length with full view finger guard

Front supports and (2) side gauges

Safety type foot pedal control

Jog, single continuous auto operation modes

One year warranty for parts





NEW GMC ELECTRO MECHANICAL POWER SHEAR - EPS-1014E
NEW GMC ELECTRO MECHANICAL POWER SHEAR - EPS-1014E
$0.00

GMC Electro Mechanical Power Shear - EPS-1014E

36” front operated power back gauge with German SIKO digital readout & fine adjustment wheel

60” long squaring arm with inch / mm scale, mounted on right side of the table

With material front out tray

Rear lifting support for thin sheet metal

2 each 24” front support arms

full length finger guard

Removable safety foot pedal control

One set of upper & lower blades

ISO 9001 certified

American design and Taiwan quality machine

With material front out tray

HD all steel construction for maximum rigidity

Precision driven gearbox

Full length 26 strokes per minute

60” long squaring arm with inch / mm scale

Spring hold-downs

High grade carbon/chrome alloy steel blades and hardened to 62 HRC

2-edge indexable upper blade and 4-edge indexable bottom blade

Full length with full view finger guard

Front supports and (2) side gauges

Safety type foot pedal control

Jog, single continuous auto operation modes

One year warranty for parts





NEW GMC HBB-1010 HYDRAULIC BOX AND PAN BRAKE NEW GMC HBB-1010 HYDRAULIC BOX AND PAN BRAKE
NEW GMC HBB-1010 HYDRAULIC BOX AND PAN BRAKE
$0.00


GMC HBB-1010 Hydraulic Box & Pan Brake

Mild Steel: 10′ x 10 gauge

Stainless Steel: 10′ x 12 gauge

Taiwan Machines

ISO 9001 certified

Hydraulic adjustment for opening

Hydraulic power clamping for workpiece

24” Manual Rear-operated backgauge

1 manual beam adjustment ( front and back )

Min. reverse bend is 3/4 (20mm)

Heavy welded all steel construction for maximum rigidity

Hydraulic logic system centrally located and quiet

A wide guidebody ensures strong, stable, smooth & accurate movement

Total pieces fingers assortment:

HBB-1010 & 1014: 3/6pcs, 4/4pcs, 5/10pcs, 6/6pcs

Central control panels on each side for convenient operation

Jog and auto operation modes

Overload protection and disconnect switch





NEW GMC HBB-1014 HYDRAULIC BOX AND PAN BRAKE NEW GMC HBB-1014 HYDRAULIC BOX AND PAN BRAKE
NEW GMC HBB-1014 HYDRAULIC BOX AND PAN BRAKE
$0.00


GMC HBB-1014 Hydraulic Box & Pan Brake

Mild Steel: 10′ x 14 gauge

Stainless Steel: 10′ x 16 gauge

Taiwan Machines

ISO 9001 certified

Hydraulic adjustment for opening

Hydraulic power clamping for workpiece

24” Manual Rear-operated backgauge

1 manual beam adjustment ( front and back )

Min. reverse bend is 3/4 (20mm)

Heavy welded all steel construction for maximum rigidity

Hydraulic logic system centrally located and quiet

A wide guide body ensures strong, stable, smooth & accurate movement

Total pieces fingers assortment:

HBB-1010 & 1014: 3/6pcs, 4/4pcs, 5/10pcs, 6/6pcs

Central control panels on each side for convenient operation

Jog and auto operation modes

Overload protection and disconnect switch





NEW GMC INITIAL PINCH HYDRAULIC PLATE BENDING ROLL HBR-0525 NEW GMC INITIAL PINCH HYDRAULIC PLATE BENDING ROLL HBR-0525
NEW GMC INITIAL PINCH HYDRAULIC PLATE BENDING ROLL HBR-0525
$0.00


GMC Initial Pinch Hydraulic Plate Bending Roll HBR-0525

ISO 9001 certified

Taiwan Machines

Easy swing –out top roller

Standard cone attachment installed

1 each LED indicator for bending roll position

Safety line all around the machine for emergency stop

Heavy Duty all steel welded machine construction

German Hydraulic logic system centrally located and quiet

Bending roll is hydraulic powered up/down & tilting adjustment

Planetary reduction gear and pump

All three rolls are made of high grade alloy steel

All rolls run forward and reverse

Safety type foot pedal control

Overload protection and disconnect switch

Power source 208V/220V, (Option 460 V, 3 phase)





NEW GMC MANUAL BOX AND PAN BRAKE BB-1014-6HD NEW GMC MANUAL BOX AND PAN BRAKE BB-1014-6HD
NEW GMC MANUAL BOX AND PAN BRAKE BB-1014-6HD
$0.00

GMC Manual Box & Pan Brake BB-1014-6HD

ISO 9002 certified

Large 1-9/16” beam opening, adjustable

1” beam adjustment ( front and back )

Total pieces fingers assortment:BB-1014-6HD: 3”/3pcs, 5”/3pcs, 6”/3pcs, 10”/3pcs, 12”/4pcs

Stop rods for repeat bends

All steel heavy body construction with extra heavy tie rod for minimum deflection




NEW GMC 48 NEW GMC 48
NEW GMC 48" BOX AND PAN BRAKE
$0.00

NEW GMC 48" BOX AND PAN BRAKE

Bend up to 12 gauge mild steel x 48" in length (compact)

Large 1-9/16” beam opening, adjustable

135 degree bend angle capacity with built in scale

2 - handwheels on the rear to ajust the gap

1” beam adjustment (front and back)

Hem light gauge material 26 Ga. or thinner

2 - 30 lbs. adjustable counterweights

Includes 9 fingers total: (measures 49")

2 - 2"

4 - 3"

2 - 4"

1 - 25"

1 - Simple stop rod is included to make repeat bends




NEW GMC POWERED SLIP ROLL PSR-5014 NEW GMC POWERED SLIP ROLL PSR-5014
NEW GMC POWERED SLIP ROLL PSR-5014
$0.00

GMC Powered Slip Roll PSR-5014

ISO 9001 certified

Heavy welded all steel construction for maximum rigidity

Silence electrical motor

Quick release top roller

Two rolls are driven

Precision ground rollers

1” roll opening

All three rolls are made of high grade alloy steel, hardened up to 50 HRC

All rolls run forward and reverse

Safety type removable foot pedal

Overload protection and disconnect switch





NEW GMC POWERED SLIP ROLL PSR-5016 NEW GMC POWERED SLIP ROLL PSR-5016
NEW GMC POWERED SLIP ROLL PSR-5016
$0.00

GMC Powered Slip Roll PSR-5016

4′ (50”) x 16 ga. GMC Powered Slip Roll

ISO 9001 certified

Heavy welded all steel construction for maximum rigidity

Silence electrical motor

Quick release top roller

Two rolls are driven

Precision ground rollers

1” roll opening

All three rolls are made of high grade alloy steel, hardened up to 50 HRC

All rolls run forward and reverse

Safety type removable foot pedal

Overload protection and disconnect switch





NEW GMC POWER RING AND ANGLE ROLL BENDER PRB-55 NEW GMC POWER RING AND ANGLE ROLL BENDER PRB-55
NEW GMC POWER RING AND ANGLE ROLL BENDER PRB-55
$0.00

GMC Power Ring and Angle Roll Bender PRB-55

ISO 9001

Heavy Duty cast iron machine construction

Hardened combination roll set for most kinds of material

Special roll sets are available for pipe & tubing

Two rollers are driven

Power source: 208V / 220V/ 230V, 3 –phase





NEW GMC POWER RING AND ANGLE ROLL BENDER PRB-65H NEW GMC POWER RING AND ANGLE ROLL BENDER PRB-65H
NEW GMC POWER RING AND ANGLE ROLL BENDER PRB-65H
$0.00

GMC Power Ring and Angle Roll Bender PRB-65H

ISO 9001 certified

Hydraulic top roller positioning

Heavy Duty AC main motor

Heavy welded all steel construction

Quiet compact hydraulic system

Comes with top roller hydraulic positioning with DRO

Custom-made rollers are available per request, such as steel, nylon, etc.





NEW GMC DELUXE HYDRAULIC SHEAR HS-1010MD NEW GMC DELUXE HYDRAULIC SHEAR HS-1010MD
NEW GMC DELUXE HYDRAULIC SHEAR HS-1010MD
$0.00

GMC Deluxe Hydraulic Shear: HS-1010MD

Weight 6350 lbs

Multiple unit sizes and variations available upon request.





NEW GMC ELECTRO MECHANICAL POWER SHEAR - EPS-1014M NEW GMC ELECTRO MECHANICAL POWER SHEAR - EPS-1014M
NEW GMC ELECTRO MECHANICAL POWER SHEAR - EPS-1014M
$0.00

GMC Electro Mechanical Power Shear - EPS-1014M

With material front out tray

HD all steel construction for maximum rigidity

Precision driven gearbox

Full length 26 strokes per minute

60” long squaring arm with inch / mm scale

Spring hold-downs

High grade carbon/chrome alloy steel blades and hardened to 62 HRC

2-edge indexable upper blade and 4-edge indexable bottom blade

Full length with full view finger guard

Front supports and (2) side gauges

Safety type foot pedal control

Jog, single continuous auto operation modes





NEW GMC POWER BENDING ROLLS - PBR-0510E NEW GMC POWER BENDING ROLLS - PBR-0510E
NEW GMC POWER BENDING ROLLS - PBR-0510E
$0.00

GMC Power Bending Rolls - PBR-0510E

All (3) rolls are hardened rolls, up to 50-52 HRC

3-rollers are driven to perform high accuracy

Adjustable cone attachment included

3/8”, ½” and 5/8” grooves on rollers

One wheel one-side operated for bending roll

One wheel one-site operated for pinch roll (E model is powered)

Heavy duty casting frame

Heavy duty all steel welded construction

1/3 of full length in middle of roller is straight, and two ends with crown to get perfect round performance.

Quiet running operation

Easy swing-out top roller

Safety line all around the machine for emergency stop

All rolls run forward and reverse

Safety type forward/reverse foot pedal

Power source 220V, (option: 440V, 3 phase)





NEW GMC POWER BENDING ROLLS - PBR-04316E NEW GMC POWER BENDING ROLLS - PBR-04316E
NEW GMC POWER BENDING ROLLS - PBR-04316E
$0.00

Power Bending Rolls - PBR-04316E

All (3) rolls are hardened rolls, up to 50-52 HRC

3-rollers are driven to perform high accuracy

Adjustable cone attachment included

3/8”, ½” and 5/8” grooves on rollers

One wheel one-side operated for bending roll

One wheel one-site operated for pinch roll (E model is powered)

Heavy duty casting frame

Heavy duty all steel welded construction

1/3 of full length in middle of roller is straight, and two ends with crown to get perfect round performance.

Quiet running operation

Easy swing-out top roller

Safety line all around the machine for emergency stop

All rolls run forward and reverse

Safety type forward/reverse foot pedal

Power source 220V, (option: 440V, 3 phase)





NEW GMC SHEET METAL CORNER NOTCHER NEW GMC SHEET METAL CORNER NOTCHER
NEW GMC SHEET METAL CORNER NOTCHER
$0.00

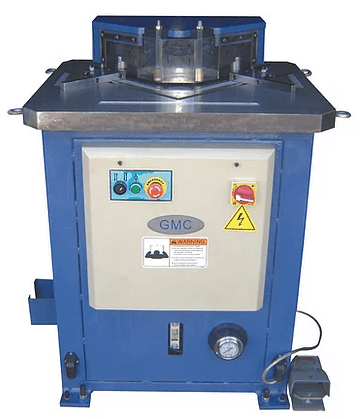

GMC SHEET METAL CORNER NOTCHER

GMC Sheet Metal Corner Notcher

ISO 9001 certified

Super large table

All steel construction

Safety finger guards

(2) quick change gauges

Foot pedal control

Quiet hydraulic system

Specifications:

Max. capacity: Mild Steel (C.R.S.): 1/4"

Max. capacity: Stainless Steel: 3/16"

Min. notching thickness 22 Ga.

Notching angle, fixed angle: 90 degree

Max. cutting lenth: 10"

Stroke per minute: 12

Table dimensions, L x W 32" x 26"

Hydraulic oil tank capacity: 135L = 9 Gal

Main Motor: 7 1/2 HP, 220V, 3-PH

Machine Weight: 2650 LBS

Machine Dimensions, L x W x H: 40"x36"x50"





NEW GMC ROTARY DRAW BENDER NEW GMC ROTARY DRAW BENDER
NEW GMC ROTARY DRAW BENDER
$0.00

GMC ROTARY DRAW BENDER

Specifications GMC DB-60A

Capacity: ½”

Minimum CLR: ¼”

Minimum OD: 1”

Solid Rod, mild steel: 2” (.125”)

Round Tube, mild steel (wall thickness): 1-1/2”

Round Pipe, mild steel, schedule 40: 1-1/2”(.125”)

Round Tube, SS steel (wall thickness): 1-1/4”

Round Pipe, SS steel, schedule 40: 2” (3/16”)

Aluminum round Tube (wall thickness)

Maximum centerline Radius: 8-1/2”

LED programming: 50 job memory

Main motor: 1.5HP, 220V,1phase

Weight: 327 LBS

Machine dimensions, LxWxH: 27” x 9” x 51”

Standard Features:

Taiwan Machine

ISO 9001 certified

This easy to use hydraulic tube draw bender has an incredible capacity of 2” tube with .12” wall thickness and 1-1/2” schedule# 40 pipe

1-1/2 HP Heavy Duty AC main motor, 220V, 1 phase

LED degree indicator with automatic stop programming, to get as true reading of bending degree.

50 jobs memory, each job program contains 9 steps

Quick tooling changes

With deluxe stand

One year warranty for parts





NEW GMC POWER BEAD ROLLER - BBM-12E NEW GMC POWER BEAD ROLLER - BBM-12E
NEW GMC POWER BEAD ROLLER - BBM-12E
$0.00

GMC POWER BEAD ROLLER - BBM-12E

Specifications:

Max Capacity

Mild Steel: 12Ga.

Stainless Steel: 16Ga.

Throat Depth: 11"

Cylinder Length: 8"

Cylinder Speed: 20 RPM

Main Motor: 2 HP, 220V, 3 Phase

Overall Dimensions (LxWxH): 55" x 20" x 47"

Machine Weight: 530 LBS

Standard Features:

ISO 9001 certified

Heavy Duty cast iron construction

(4) sets of standard dies, S1, S2, S3, and S4

Easy adjustment and operation

Ideal to make Ogee Bead, Turning, Wiring, Crimping, Burring, Elbow Edging, Single Bead, flange, slitting, flattening, offset





NEW GMC 10' x 14 Ga. - CNC SHEET METAL FOLDER NEW GMC 10' x 14 Ga. - CNC SHEET METAL FOLDER
NEW GMC 10' x 14 Ga. - CNC SHEET METAL FOLDER
$0.00

10' x 14 Ga. - CNC Sheet Metal Folder

Specifications:

ISO 9001 certified

Designed in US and Taiwan quality Machine

Meet OSHA and CE safety standard

ESA CNC control, made in Italy

Max. 99 bends per program

Up to 2000 Programs Storage

Profiles library with graphics

Programmable Radius Bend

Programmable Angle/ Angle Correct

48” CNC back gauge with table and fingers

Hardened nose bar and table, up to 48HRC

Comes with one 1” Insert Bar and one ½” Insert Bar

Yaskawa Servo motors and Drives

Schneider electrical components

All steel construction for maximum rigidity

Hydraulic logic system centrally located and quiet

Meet OSHA standard, to start the program, need to press foot pedal twice

Safety type foot pedal with handle and E-stop switch

Safety 24V low voltage & overload protection

One year industrial warranty for parts

Standard Features:

Capacity:

Mild Ste: 14Ga.

Stainless Steel: 18Ga.

Close hemming: 22Ga.

Open hemming: 22Ga.

Bending Length Capacity 10'1"

Bend Angle Degree, programmable 0-135 degree

Hemming capacity, mild steel: 20Ga.

Hemming capacity, stainless steel: 24Ga.

Large Beam Opening/clamping opening: 4 7/8"

Min. Reverse Bend: 1/2"

Max, Table Back Gauge Distance: 48 3/8"

Min. Table Back Gauge Distance: 1/2"

Back Gauge Repeatability: 0.0039"

Back Gauge Table Height 35 3/4"

Motor for Bending Leaf: 4HP, 220V, 3PH

Servo motor for back gauge: 2HP, 220V, 3PH

Clamping Motor: 1 1/2HP, 220V, 3PH

Machine Weight: 8,850 LBS

Machine Size (LxWxH): 158" x 79" x 63"






NEW GMC GANG TYPE METAL POWERED SLITTER WITH PROGRAMMABLE CUT TO LENGTH NEW GMC GANG TYPE METAL POWERED SLITTER WITH PROGRAMMABLE CUT TO LENGTH
NEW GMC GANG TYPE METAL POWERED SLITTER WITH PROGRAMMABLE CUT TO LENGTH
$0.00

NEW GMC GANG TYPE METAL POWERED SLITTER WITH PROGRAMMABLE CUT TO LENGTH

ISO 9001 certified

American design and Taiwan quality machine

Slit and cut to length in one unit

NC programmable cutting length, 100 job memory feature

Single cycle Mode-manual shearing with foot pedal when programmed length is reach for each cut.

Auto cycle mode-shearing will auto cycle the programmed cut lengths.

Easy removal of slitting blades for cut to length operations without slitting.

feed the sheet metal from the manual decoiler to cut to length without slitting blades

5” Omron touch screen

3-1/8” diameter shafts mounted in precision ball sealed bearings

Slitting blades are dual edged

Safety type foot pedal control






NEW GMC 10’6” x 22 Ga Siding Brakes - Roofing Sheet Metal Benders
NEW GMC 10’6” x 22 Ga Siding Brakes - Roofing Sheet Metal Benders
$0.00

NEW GMC 10’6” x 22 Ga Siding Brakes - Roofing Sheet Metal Benders

ISO 9001 certified

Portable type, foldable

Heavy welded snap steel stand

Cut off shear

Ideal for roofers, and HVAC shops



NEW GMC 10' X 14 GA. - CNC FOLDER AND BOX AND PAN BRAKE NEW GMC 10' X 14 GA. - CNC FOLDER AND BOX AND PAN BRAKE
NEW GMC 10' X 14 GA. - CNC FOLDER AND BOX AND PAN BRAKE

10' X 14 GA. - CNC FOLDER AND BOX & PAN BRAKE

Capacity Mild Steel 14GA Stainless Steel 18GA Close hemming with one piece finger 26GA Open hemming 24GA Bending length capacity 10'1" Bend Angle Degree, programmable 0-135 DEGREE Max depth of box or pan 4” Large Beam Opening/clamping opening 4-7/8” Min. Reverse Bend 1/2” Max. Table Back Gauge Distance 48-3/8” Min. Table Back Gauge Distance 1/2” Back Gauge Repeatability 0.0039” Back Gauge Table height 35-3/4” Motor for bending leaf 4HP, 220V,3phase Servo motor for back gauge 2HP ,220V, 3phase Clamping motor 1-1/2HP , 220V, 3phase Amperage Draw 35A Machine weight , 9,850 LBS Shipping weight 10,150 LBS Machine dimensions, LWH 168x79x67” Shipping dimensions 174x80x71”

Designed in US and Taiwan quality Machine Meet OSHA and CE safety standard ESA S840 CNC control, made in Italy 16” large Digital glass touch screen Max. 99 bends per program Up to 2000 Programs Storage Profiles library with graphics Programmable Radius Bend Programmable Angle/ Angle Correct 48” CNC back gauge with table and fingers One piece 10' long straight finger Comes with one 1” Insert Bar and one ½” Insert Bar Yaskawa Servo motors and Drives Schneider electrical components All steel construction for maximum rigidity Safety type foot pedal with handle and E-stop switch Safety 24V low voltage & overload protection Power supply is 220V, 3 phase or 208V, 3 phase
