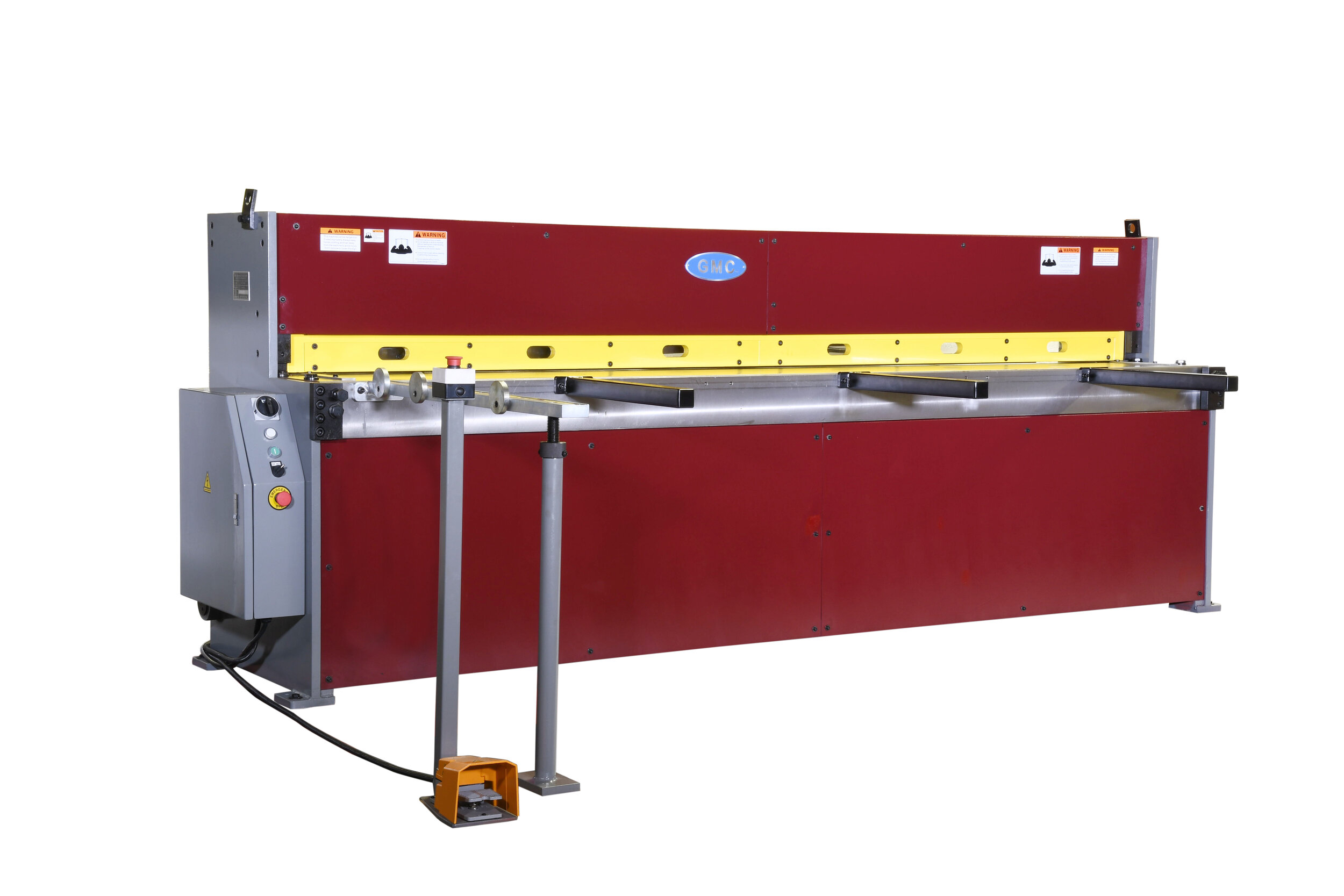

NEW GMC DELUXE HYDRAULIC SHEAR HS-1010MD
$0.00
GMC Deluxe Hydraulic Shear:
HS-1010MD Hydraulic Metal Shear Standard Features ISO 9001 certified Taiwan machines
GMC Deluxe Hydraulic Shear:
HS-1010MD Hydraulic Metal Shear Standard Features ISO 9001 certified Taiwan machines
GMC Deluxe Hydraulic Shear:
HS-1010MD Hydraulic Metal Shear Standard Features ISO 9001 certified Taiwan machines
Specifications
Back Gauge
24” manual back gauge.
Blade Gap Adjustment
One side handwheel operate quick change blade gap adjustment (bga) with gap dial shadow line for accurate straight cutting.
Squaring Arm
60” squaring arm with inlaid inch/metric dual scale.
Electric Control System
Ce standard “omero” electric control system.
Safety Standard
Meets OSHA safety standard code.
Loading Workpiece
Adjustable cutting length and stroke ball transfer plates on worktable for easy loading workpiece.
Frame
Well balanced and sturdy all steel machine frame.
Hydraulic
German made hydraulic logic system centrally located and quiet.
Hold- Downs
Hydraulic hold-downs with anti-mar neoprene.
Shear blades
Shear blades are high grade carbon/chrome alloy steel and hardened to 60 hrc.
Blade
2-edge indexable upper blade and 2-edge indexable bottom blade full length viewable safety finger guard to protect operator from cutting hazard.
Foot Pedal
Removable safety foot pedal.
Blade Raise Feature
Automatic blade raise up on removal of foot from pedal hydraulic.
Overload Protection
Electrical overload protection.
Control Panel
Compact operator control panel.
Motors Overload Protection
All motors are overload protected & low voltage control system jog or continuous auto cycle cutting operation modes.
Warranty
One year industrial warranty for parts.
Manual Back Gauge
24” manual back gauge(one side wheel drive) 1 each 60” squaring arm with inlaid inch/metric dual scale.
Blade Gap Adjustment
Quick change blade gap adjustment (bga).
Straight Cutting
Shadow line for accurate straight cutting.
Material Support and Drop Back
Material support and drop back chuter upper and bottom blade set with 2-edge on bottom & 2-edge on upper 2 each 24”.
Hydraulic Hold- Downs
Front support arms hydraulic hold-downs with anti-mar neoprene.
Finger Guard
Full length viewable finger guard.
Safety Foot Pedal
Removable safety foot pedal tool box.
