NEW BRAVO 6018 DUCT LINE
Affordable. Now a cnc rectangular duct line is within the financia! Reach of even the smallest hv ac contractor. Lt costs less than the contractors new pickup truck and this duct line will pay for itself in labor, material costs and scrap savings in about 10 months (assuming 150,000+ lbs. Processed per year)
Reliable & supportable … anywhere in the world. No matter where it is used in the world, this duct line has been designed to be able to be supported locally. We build the machine with internationally respected and available components. Whether in dubai or johannesburg, parts for this machine are available.
Benefits
Fast payback. Lf you produce 150,000 lbs. Of duct or more in a year, you can expect the savings in material and labor costs to pay for this machine in 10 months or less.
Accuracy. Everything is automatic and precise; servomotor and encoder are better than just using measuring tape.
Always ready. The bravo 6018 duct line beats you to work, does not take lunch or breaks.
Material savings. Most users save between 18 and 24% on scrap and as much as 20% with coils.
Labor savings = payroll savings. Make duct in a fraction of the time when produced by hand.
Specifications:
Capacity: 60″ x 18 gauge galvanized
Electrics: 220/3/60 (standard)
Max duct length: 13′
Footprint: 7′ x 28′
Max coil weight: 12,000#
Max coil width: 60″
Min duct width: 8″
Max thickness of metal: 18-gauge mild steel
Line speed: approx. 0-30 fpm
Uncoiling: one carriage with two 6000 lb. X 60″ wide payoff reels, with expandrels
Touch screen cnc controlled
Automatically feeds off the coil

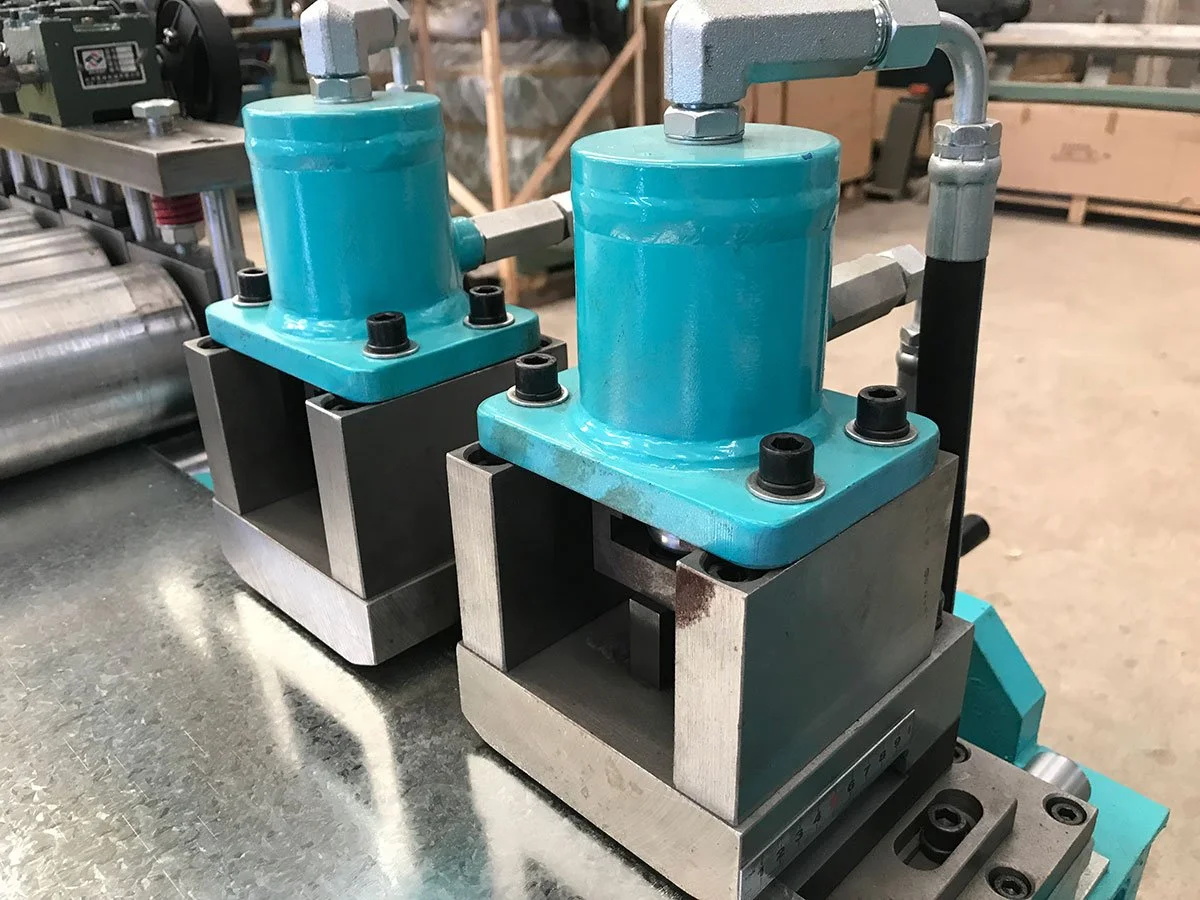

Straightens, beads, notches (s&drive, tdc and tdf)
Shears and brakes to half sections or full wrapper duct
Plc: panasonic
Electrics: schneider or siemens
Rotary encoder: nemicon (japanese)
Bearings: torrington, skf or koyo
Hydraulics: huade (taiwan)
Servo motor: yaskawa
Touch screen: weilun
