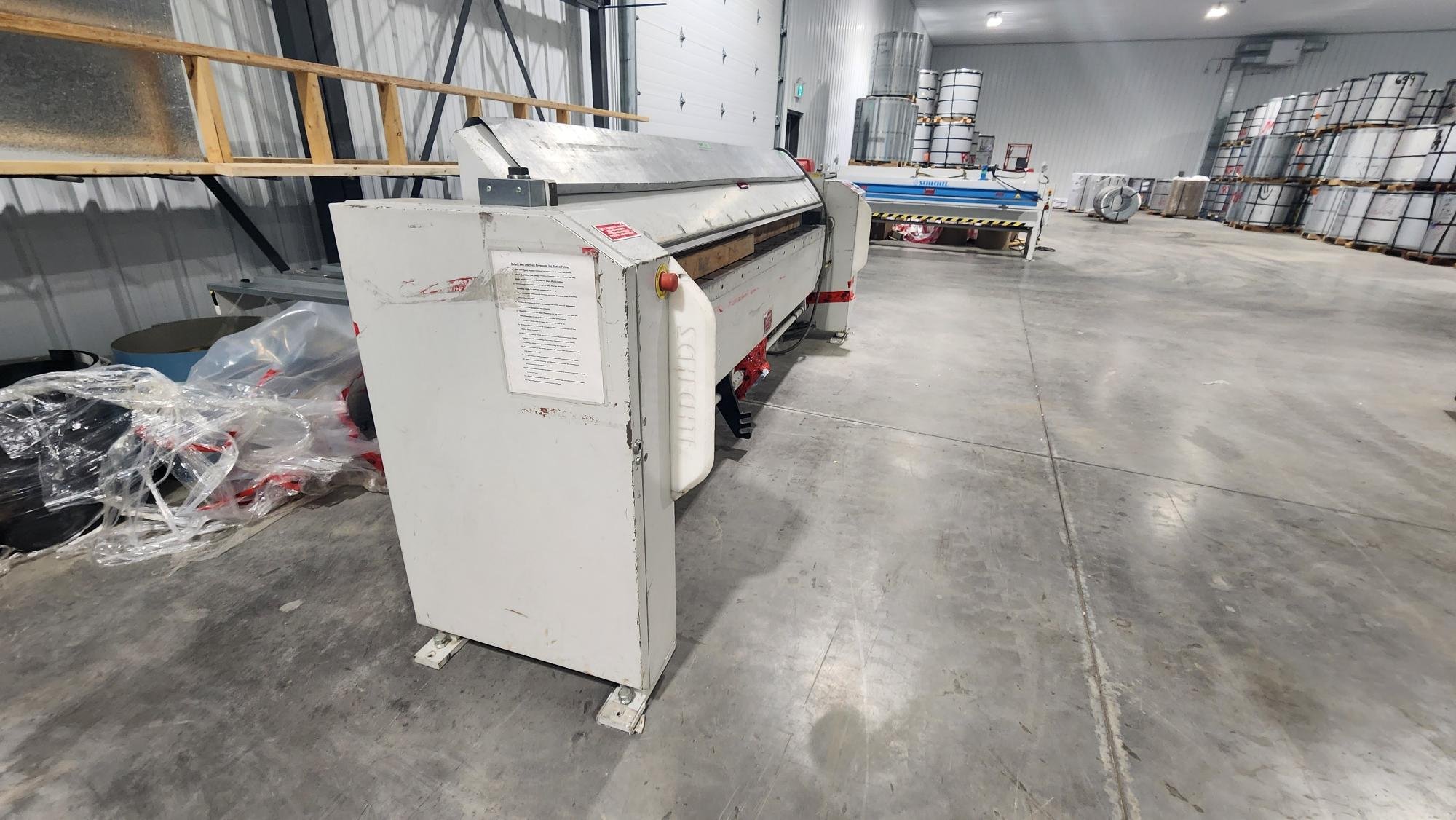

USED SCHECHTL CNC FOLDING BRAKE
USED Schechtl CNC FOLDING BRAKE
Model: MAX 310/
Year of MFG: 2014
Max Thickness (gauge): 16 Gauge
Overall Length: 10'
Working Length: 122"
Capacity: 16 ga CRS
Maximum Closed Hemming Capcity: 24 ga CRS
Upper Beam Stroke: 4.7"
Folding Beam Speed: 85°/sec
Folding Beam Arc with 20°: 0°-160°
Upper Beam Speed: 2.5"/sec
BackGauge Depth: 39.5"
BackGauge Accuracy: ±.004
Electrics-3 Phase, 60 Hz @ 20 amps: 230V

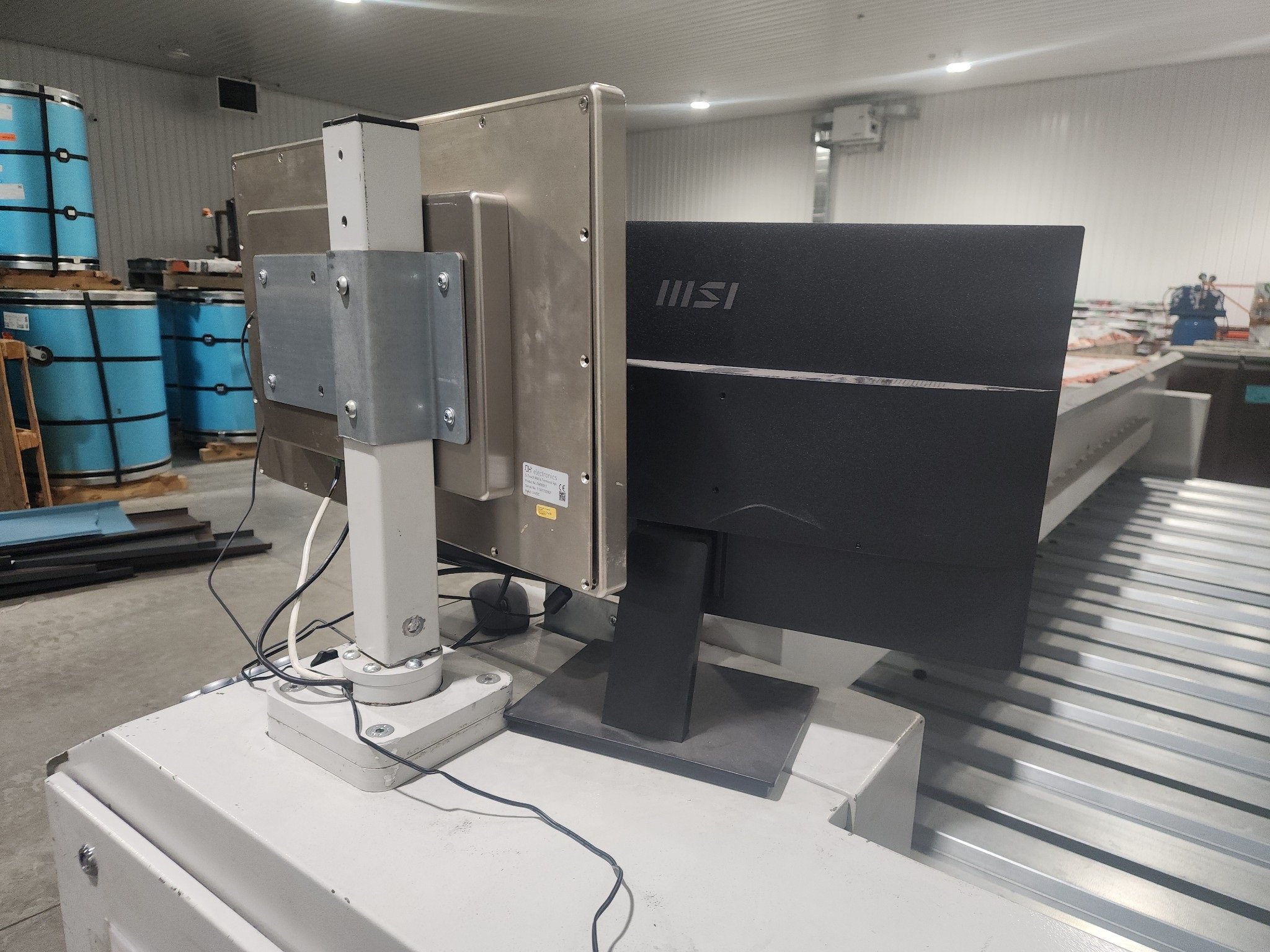

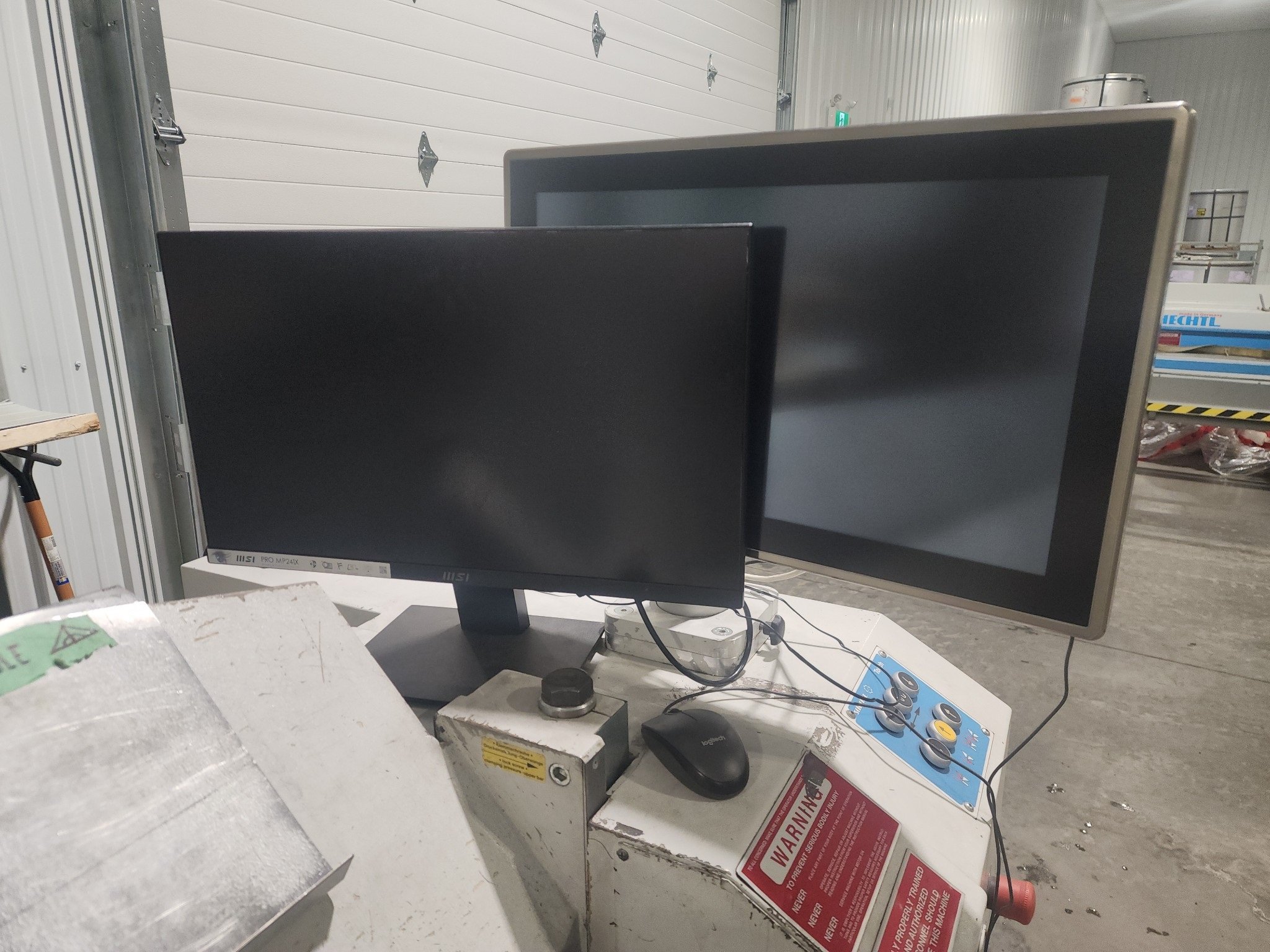

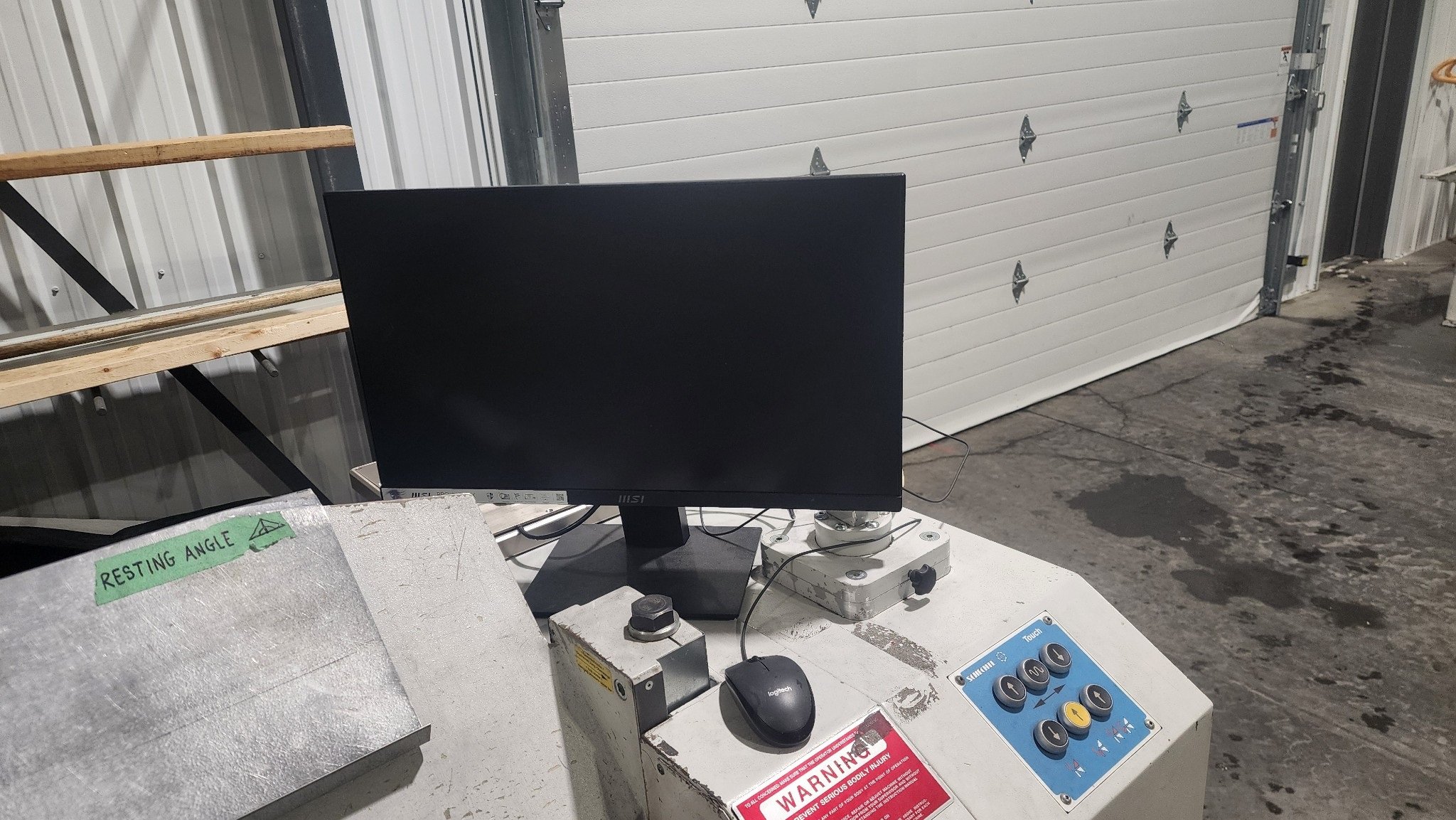

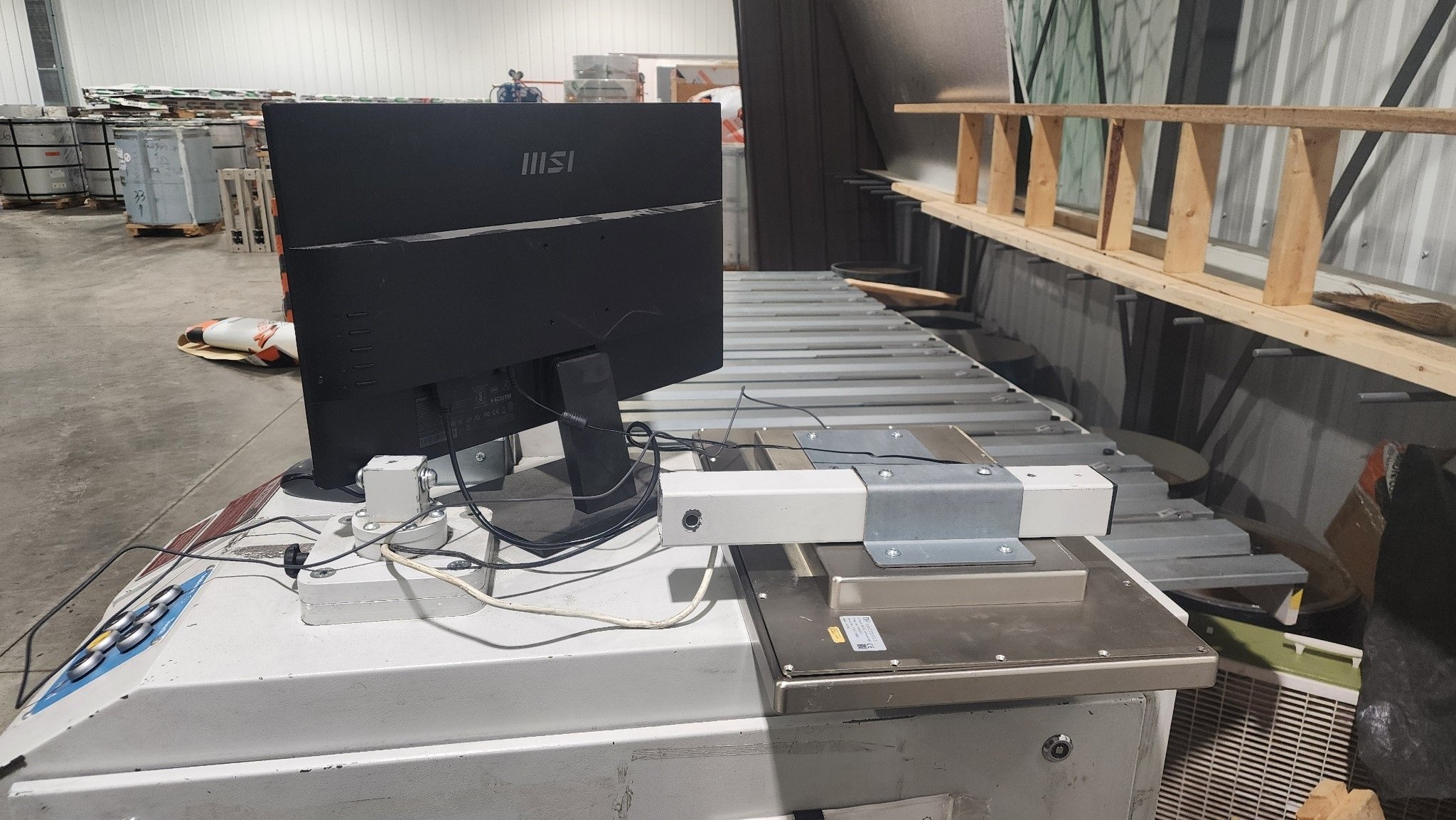

Control: CNC
Weight: 4,500 Lbs.
Length: 150.8"
Depth: 70.5"
Height: 54.5"
