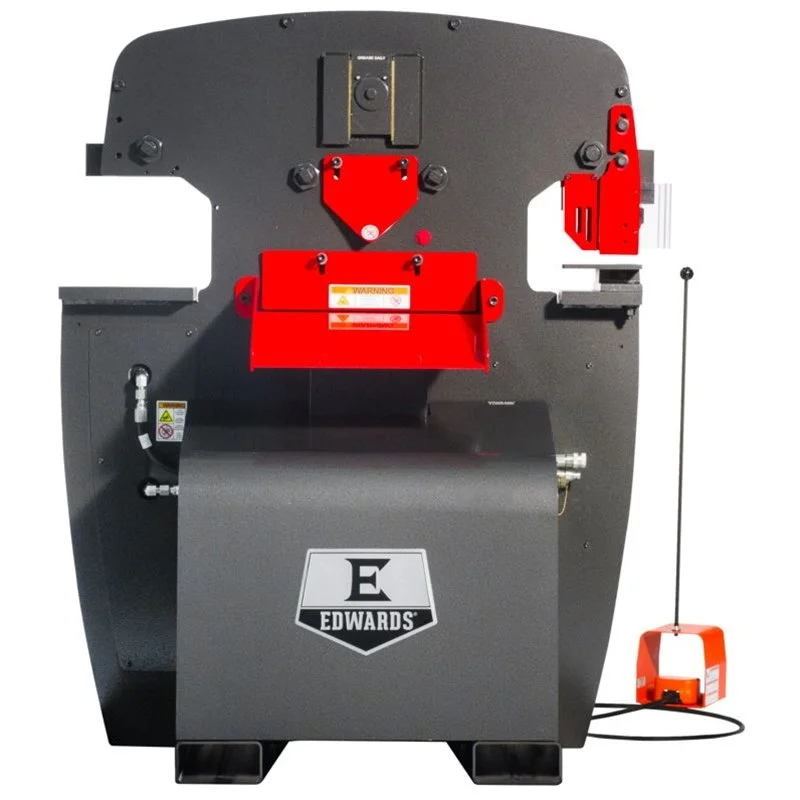

NEW EDWARDS 55 TON IRONWORKER
Four available workstations
Universal open tooling station
Electric stroke control
Ansi b11.5-1988r(02) compliant
Etl/ul approved controls
Punch
Rating
55 tons
Max. Capacity
1-1/16" dia. In 5/8" a36 (65,000 psi tensile)
Stroke
1-1/4"
Throat depth
7-1/2"
Open height
8-1/8"
Shut height
6-7/8"
Work height
36-9/16"
Flat bar shear
Max. Capacity
3/8" x 14" 1/2" x 12" 3/4" x 4"
Max. Round
7/8"
Max. Square
7/8"
Work height
34-1/2"
Angle shear
Max. Capacity
3" x 3" x 3/8" 4" x 4" x 1/4"
Work height
39-7/8"
Optional coper notcher
Max. Capacity
2-1/2" x 4" x 5/16"
Work height
39-1/2"
Open station
Throat depth
11-3/16"
Open height
8-1/8"
Shut height
6-7/8"
Stroke
1-1/4"
Work height
34-1/2"
General specifications
Standard motor
5 hp 3~ 208 v or 230 v 1725 rpm 14 a
Optional motors
5 hp 3~ 460 v 1725 rpm 7 a 5 hp 3~ 575 v 1725 rpm 6 a 5 hp 1~ 230 v 1725 rpm 23 a
Hydraulic pump
3-1/2 gpm - 1 stage
Valve pressure
2500 psi
Reservoir
7 gallons
Cylinder
2-1/2" ram
Dimensions
Height
55-1/4"
Width
44-3/8"
Depth
36-1/8"
Shipping weight
2480 lb
