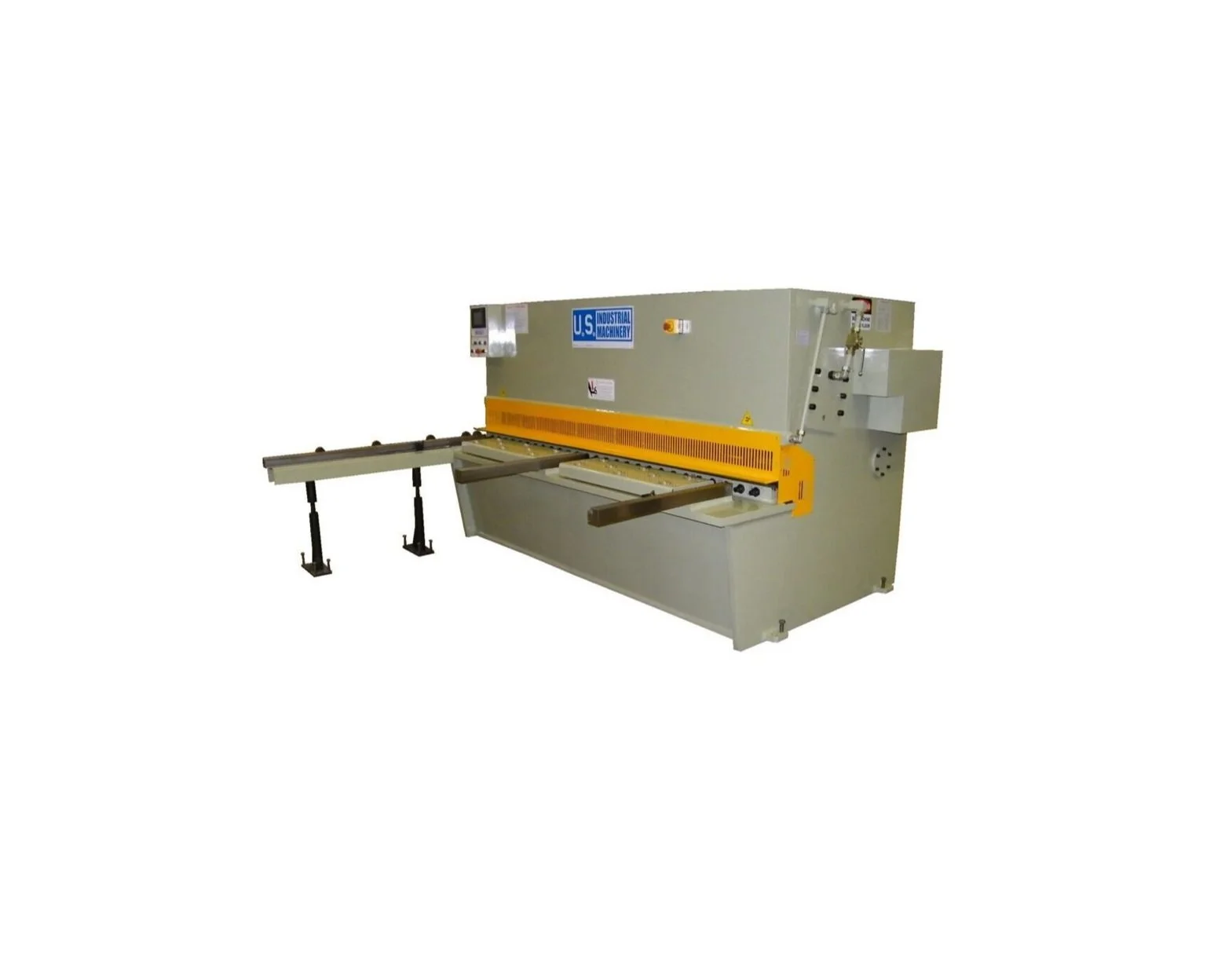

U.S. INDUSTRIAL 10' X 3/8 HYDRAULIC SHEAR

STANDARD EQUIPMENT: (All of the following comes with the machine) Squaring Arm Bolt on table segments…quantity of 3 High Carbon, High Chrome Shear Blades Hold-downs faced w/anti-mar neoprene Ball Transfers on Each Table Segment Swing Beam Design Manual Quick Change Blade Gap Adj. Pressure Sensing Hold Downs Squaring Arm, 39.5” from blade to end Electric Stroke Adjustment Stroke Counter Operator Control Console Front-controlled Power Back Gauge Shadow Lighting Blade Guard, Micro Switch Protected Low Noise Gear Pump Hydraulic, Electrical Overload Protection Support Arms Included Automatic Swing-up on Back Gauge

SPECIFICATIONS: Sheet Size: 126” Shearing Capacity: 3/8” Mild Steel @ 65,000 PSI Shear Angle: 1 Degree 30’ No Load Strokes: 10 Throat Depth: 4.7” Adjustment Range of Back Gauge: 0.75” - 36” Hydraulic Oil Capacity: 73 Gal. Main Motor: 20 HP Net Weight: 24,250 lbs. Dimensions (L x W x H): 159” x 80” x 70”

OTHER SIZES AND MODELS AVAILABLE UPON REQUEST

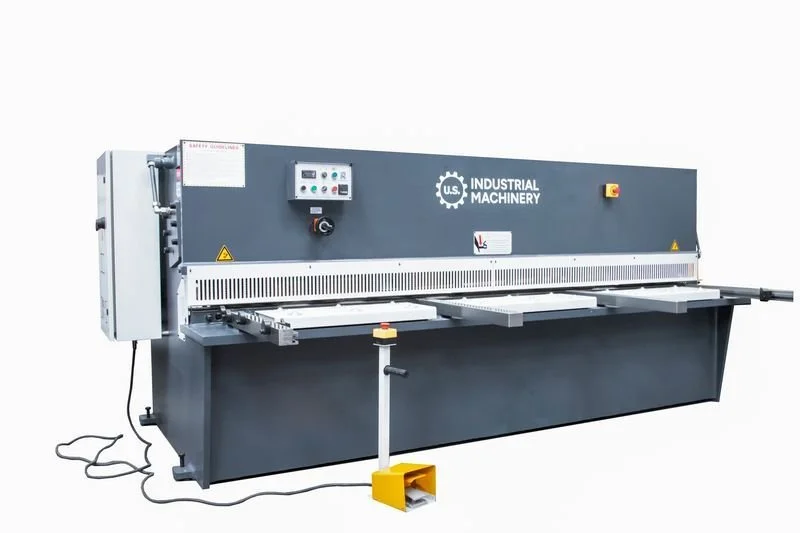

U.S. INDUSTRIAL 10’ X 1/2” HYDRAULIC SHEAR

STANDARD EQUIPMENT: (All of the following comes with the machine) Squaring Arm Bolt on table segments…quantity of 3 High Carbon, High Chrome Shear Blades Hold-downs faced w/anti-mar neoprene Ball Transfers on Each Table Segment Swing Beam Design Manual Quick Change Blade Gap Adj. Pressure Sensing Hold Downs Squaring Arm, 39.5” from blade to end Electric Stroke Adjustment Stroke Counter Operator Control Console Front-controlled Power Back Gauge Shadow Lighting Blade Guard, Micro Switch Protected Low Noise Gear Pump Hydraulic, Electrical Overload Protection Support Arms Included Automatic Swing-up on Back Gauge

SPECIFICATIONS: Sheet Size: 126” Shearing Capacity: 1/2” Mild Steel @ 65,000 PSI Shear Angle: 1 Degree 48’ No Load Strokes: 10 Throat Depth: 4.7” Adjustment Range of Back Gauge: 0.75” - 36” Hydraulic Oil Capacity: 87 Gal. Main Motor: 25 HP Net Weight: 26,455 lbs. Dimensions (L x W x H): 159” x 80” x 70”

OTHER SIZES AND MODELS AVAILABLE UPON REQUEST.

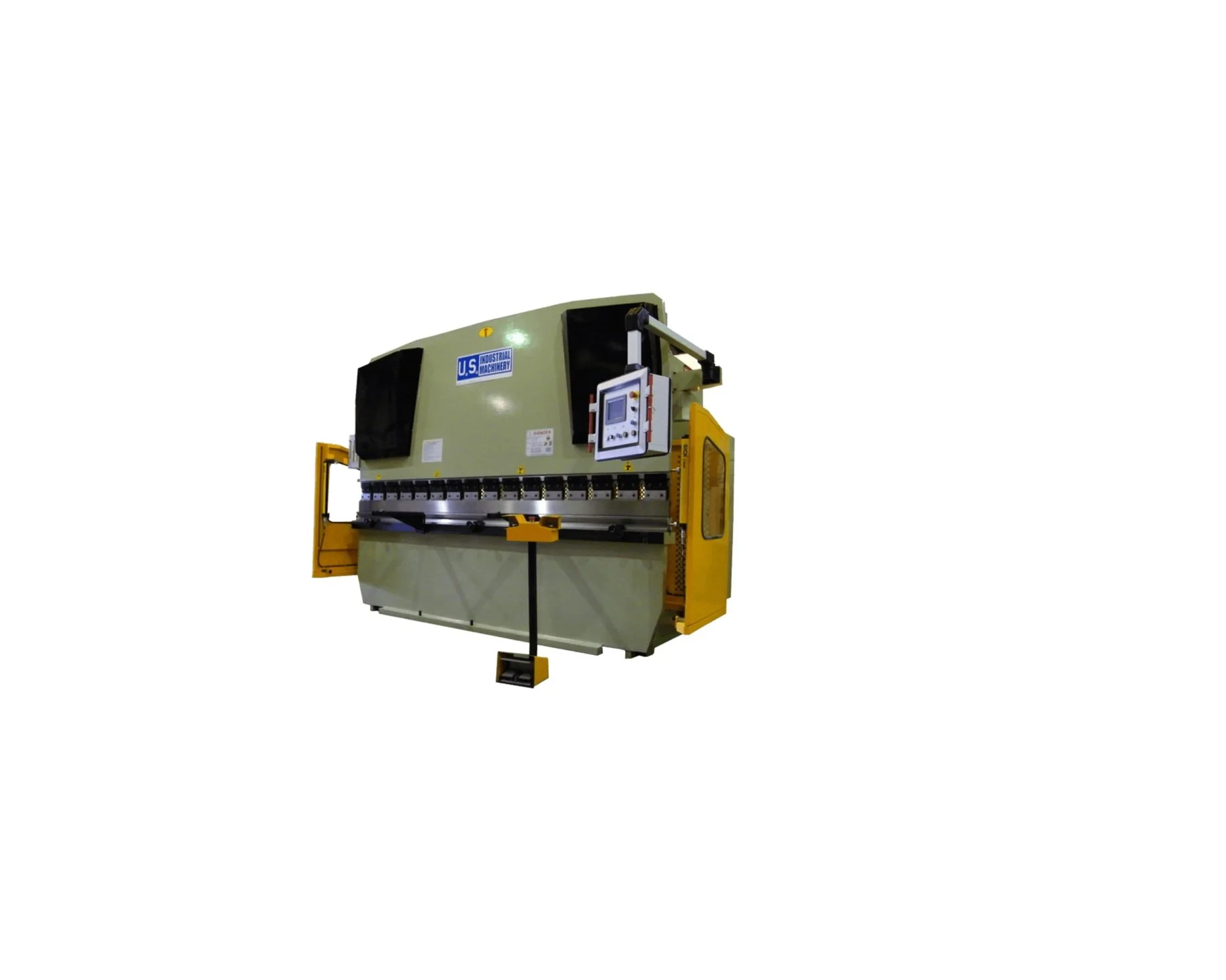

U.S. INDUSTRIAL 10' X 88 TON CNC BRAKE

STANDARD EQUIPMENT: (All of the following comes with the machine) Ram Deflection Adjustment Mechanical Ram Depth Control Massive Torsion Bar for Parallelism Forged Heavy Duty Cylinder and Cylinder Body Three Speed Ram Rapid Approach, Bending Cycle and Rapid Retreat Bottom Time Delay All Steel Construction Inching, Single Cycle and Continuous Operation Ram takes standard American Tang Tooling (1/2” x 5/8”) Space between Ram Tool Clamps allows for deep box bending Bed has slot for standard American tang tooling Bed also holds tooling with capture clamps Free Gooseneck Punch and multi-opening Die for up to 90° forming in 10 gauge mild steel

SPECIFICATIONS: Working Pressure: 88 Tons Pressing Speed: Dependent on Tool Load Length of Working Table: 125.9” Hydraulic Oil Capacity: 79 Gal. Distance Between Housings: 106.2” Motor Horsepower: 10 HP Throat Depth: 9.8” Net Weight: 14,332 lbs. Stroke Adjustment of Ram: 1.96” Length: 148” Ram Travel: 3.93” Width: 64” Open Height: 13.7” Height: 90” Rapid Ram Travel Speed: 2.4”/sec. Rapid Ram Retreat Speed: 2.0”/sec. Backgauge Travel: 24”

OTHER SIZES AND MODELS AVAILABLE UPON REQUEST

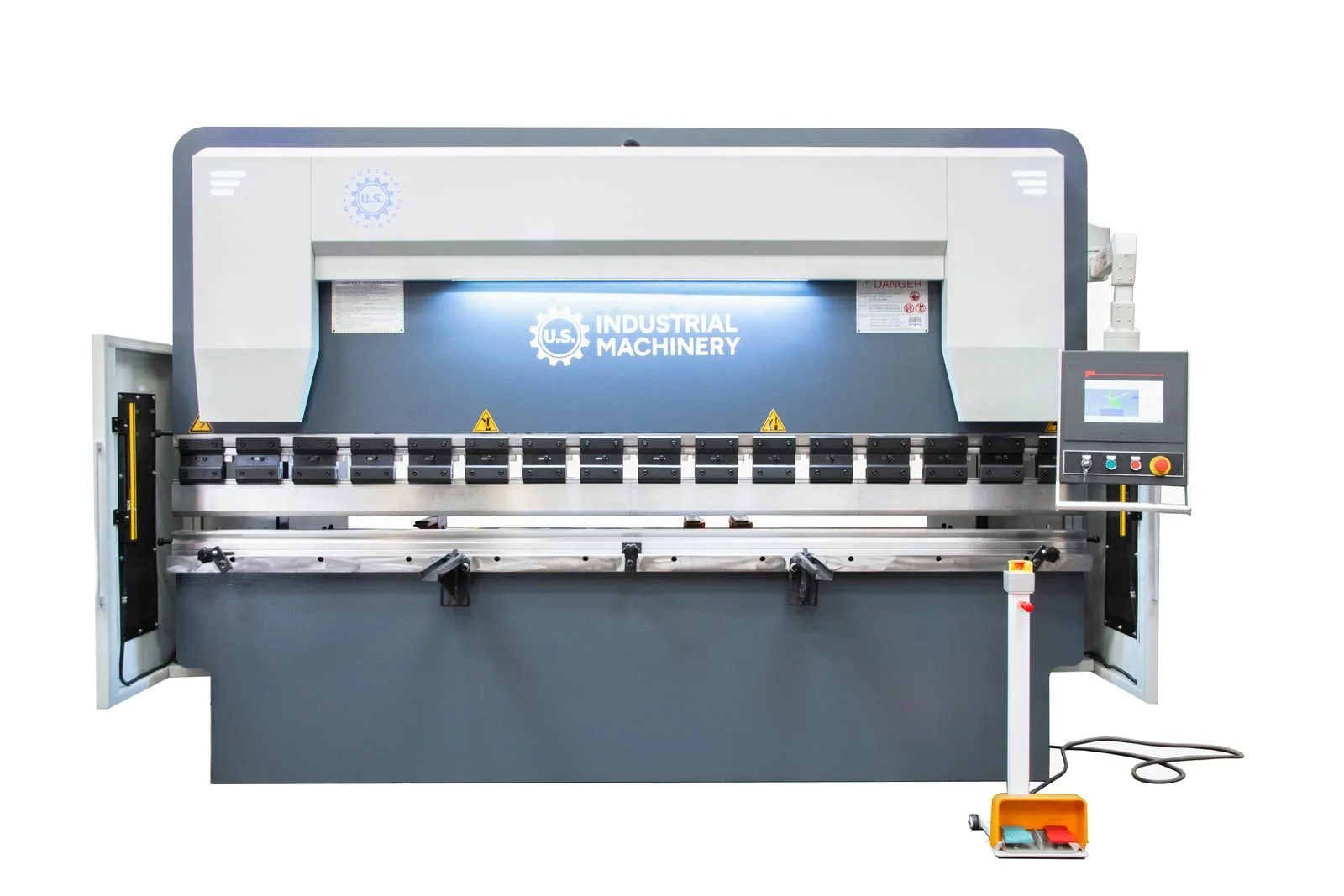

U.S. INDUSTRIAL 10' X 155 TON CNC BRAKE

STANDARD EQUIPMENT: (All of the following comes with the machine) Ram Deflection Adjustment Mechanical Ram Depth Control Massive Torsion Bar for Parallelism Forged Heavy Duty Cylinder and Cylinder Body Three Speed Ram Rapid Approach, Bending Cycle and Rapid Retreat Bottom Time Delay All Steel Construction Inching, Single Cycle and Continuous Operation Ram takes standard American Tang Tooling (1/2” x 5/8”) Space between Ram Tool Clamps allows for deep box bending Bed has slot for standard American tang tooling Bed also holds tooling with capture clamps Free Gooseneck Punch and multi-opening Die for up to 90° forming in 10 gauge mild steel

SPECIFICATIONS: Working Pressure: 155 Tons Pressing Speed: Dependent on Tool Load Length of Working Table: 125.9” Hydraulic Oil Capacity: 79 Gal. Distance Between Housings: 106.2” Motor Horsepower: 15 HP Throat Depth: 12.5” Net Weight: 22,046 lbs. Stroke Adjustment of Ram: 2.75” Length: 148” Ram Travel: 5.9” Width: 64” Open Height: 16.3” Height: 101” Rapid Ram Travel Speed: 2.4”/sec. Rapid Ram Retreat Speed: 2.0”/sec. Backgauge Travel: 24”

OTHER SIZES AND MODELS AVAILABLE UPON REQUEST.

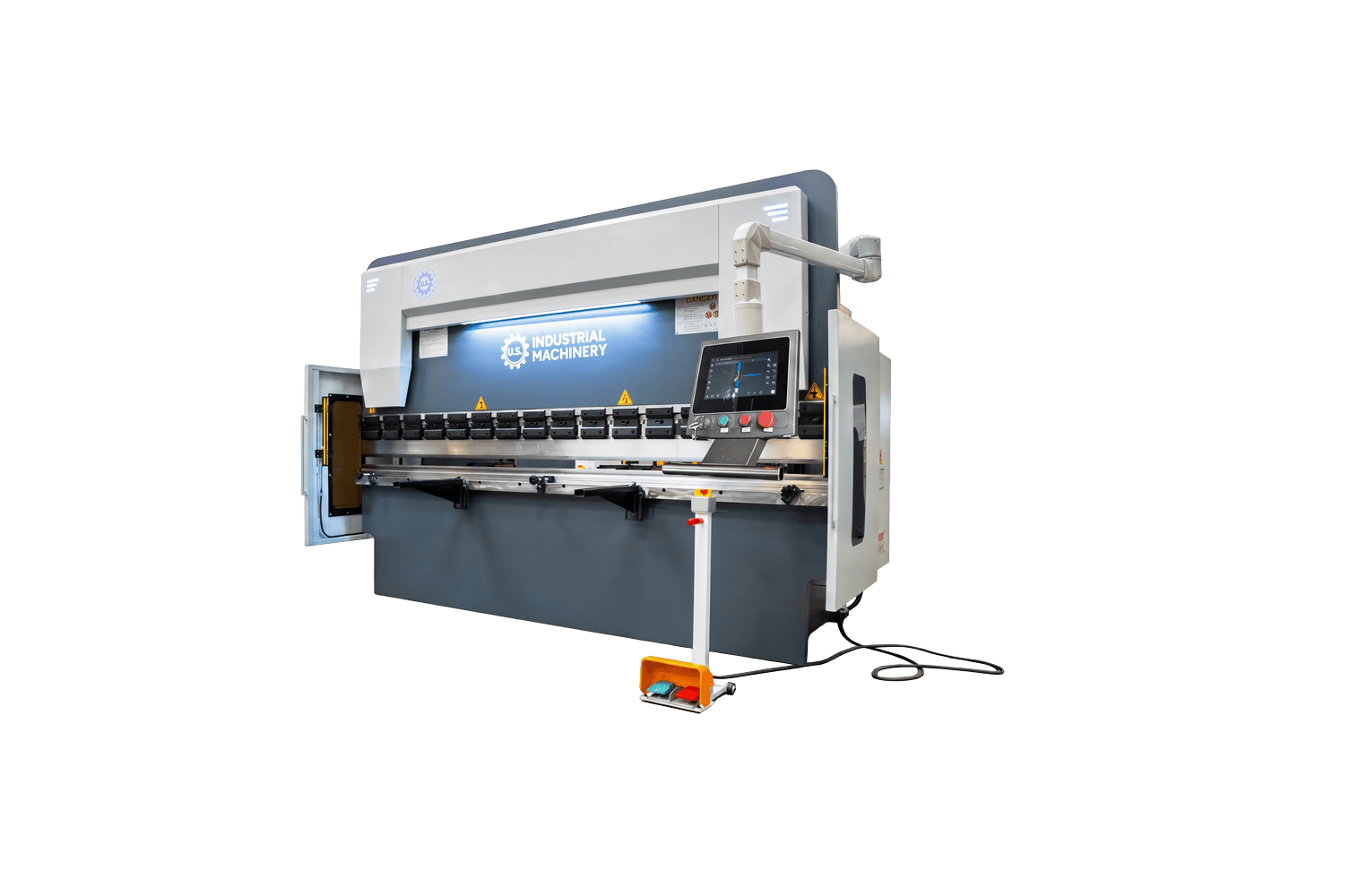

U.S. INDUSTRIAL 10' X 200 TON CNC BRAKE

STANDARD EQUIPMENT: (All of the following comes with the machine) Ram Deflection Adjustment Mechanical Ram Depth Control Massive Torsion Bar for Parallelism Forged Heavy Duty Cylinder and Cylinder Body Three Speed Ram Rapid Approach, Bending Cycle and Rapid Retreat Bottom Time Delay All Steel Construction Inching, Single Cycle and Continuous Operation Ram takes standard American Tang Tooling (1/2” x 5/8”) Space between Ram Tool Clamps allows for deep box bending Bed has slot for standard American tang tooling Bed also holds tooling with capture clamps Free Gooseneck Punch and multi-opening Die for up to 90° forming in 10 gauge mild steel

SPECIFICATIONS: Working Pressure: 200 Tons Pressing Speed: Dependent on Tool Load Length of Working Table: 125.9” Hydraulic Oil Capacity: 79 Gal. Distance Between Housings: 102.3” Motor Horsepower: 20 HP Throat Depth: 12.5” Net Weight: 25,357 lbs. Stroke Adjustment of Ram: 2.75” Length: 148” Ram Travel: 7.0” Width: 64” Open Height: 17.5” Height: 101” Rapid Ram Travel Speed: 2.4”/sec. Rapid Ram Retreat Speed: 2.0”/sec. Backgauge Travel: 24”

OTHER SIZES AND MODELS AVAILABLE UPON REQUEST.

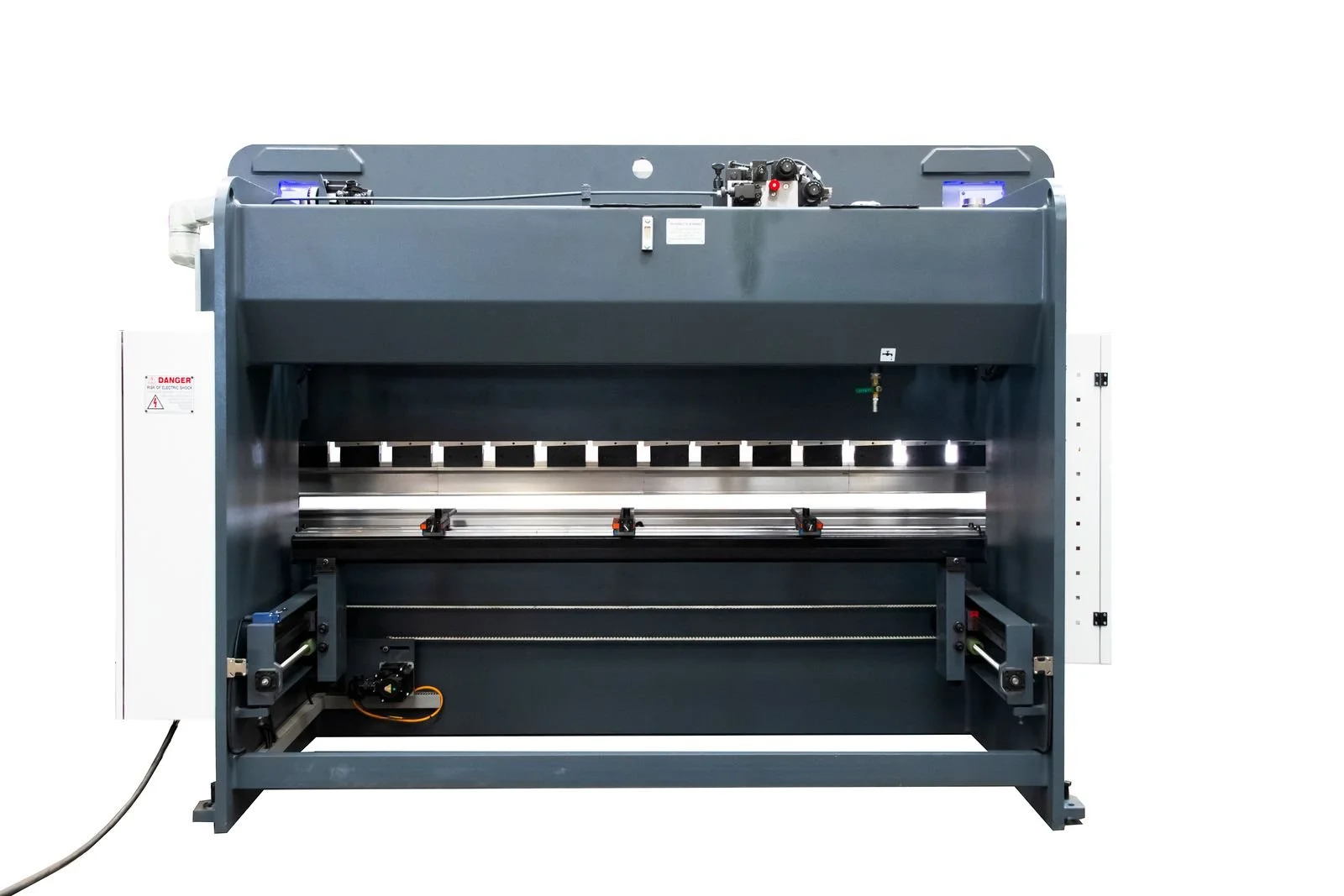

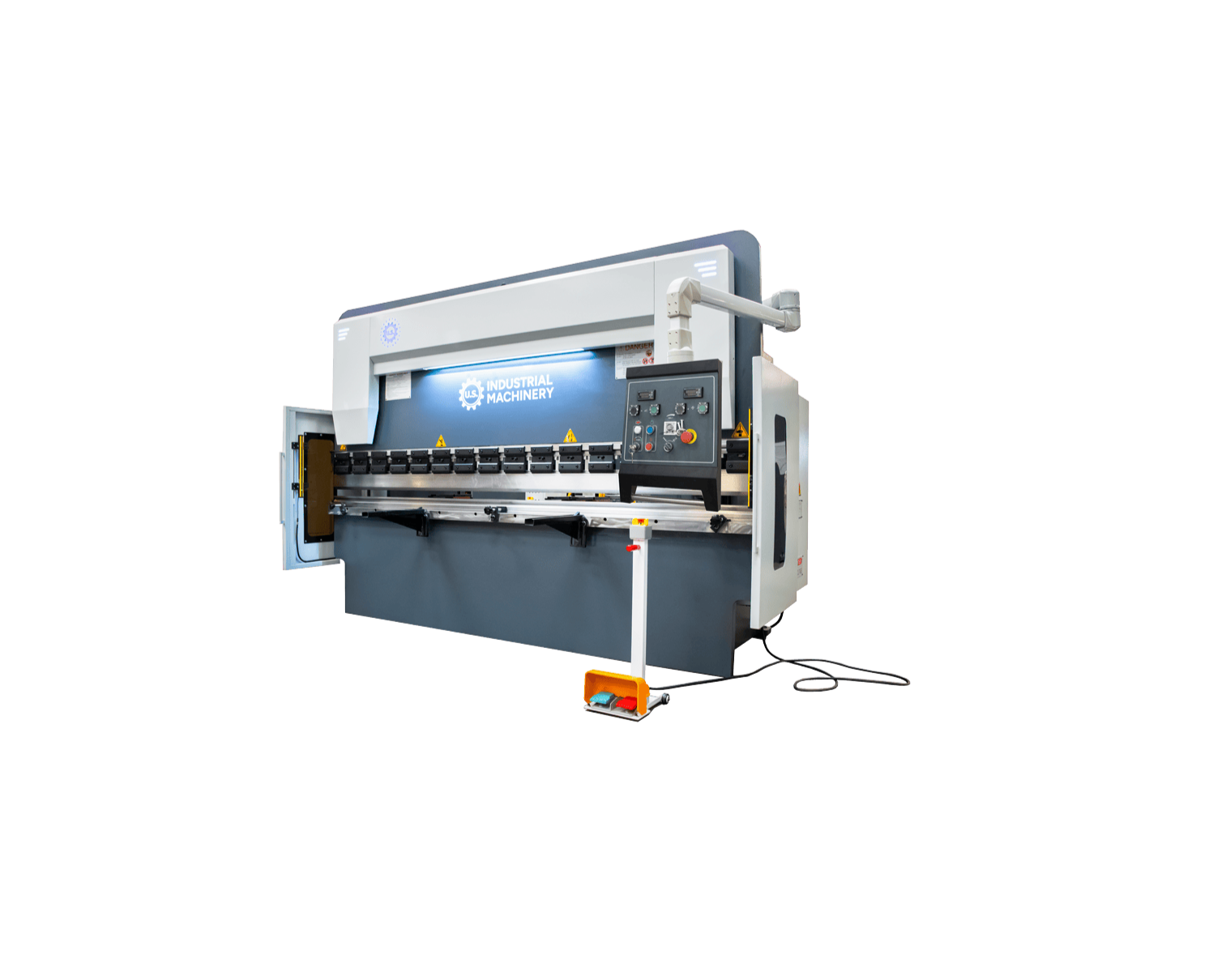

U.S. INDUSTRIAL 10' X 88 TON MANUAL BRAKE

STANDARD EQUIPMENT: (All of the following comes with the machine) Power Front Operated Back Gauge, motorized with fine adjustment handwheel Power Ram Depth Control, motorized with fine adjustment handwheel Digital Displays for backgauge position and ram position All Steel Construction Sick 4000 Light Curtain Ram accepts standard American Tang tooling, ½” x 5/8” Space between Ram Tool Clamps allows for deep box bending Bed has slot for standard American Tang tooling Bed also has capture clamps for tooling without tang Free Gooseneck Punch and multi-opening Die for up to 90° forming in 10 gauge mild steel

SPECIFICATIONS: Working Pressure: 88 Tons Pressing Speed: Dependent on Tool Load Length of Working Table: 125.9” Hydraulic Oil Capacity: 79 Gal. Distance Between Housings: 106.2” Motor Horsepower: 10 HP Throat Depth: 9.8” Net Weight: 14,332 lbs. Stroke Adjustment of Ram: 1.96” Length: 148” Ram Travel: 3.93” Width: 64” Open Height: 13.7” Height: 90” Rapid Ram Travel Speed: 2.4”/sec. Rapid Ram Retreat Speed: 2.0”/sec. Backgauge Travel: 24”

OTHER SIZES AND MODELS AVAILABLE UPON REQUEST

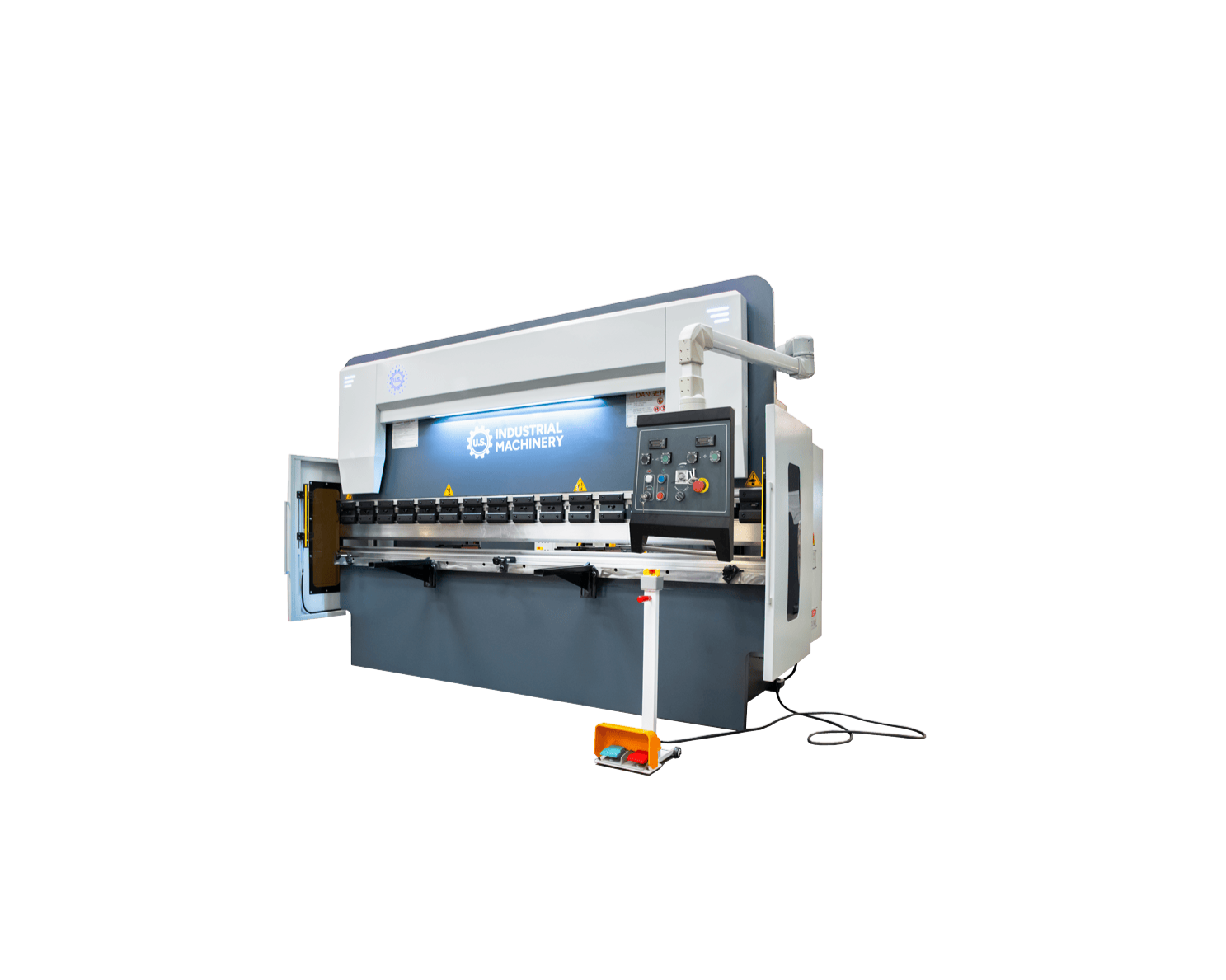

U.S. INDUSTRIAL 10' X 125 TON MANUAL BRAKE

STANDARD EQUIPMENT: (All of the following comes with the machine) Power Front Operated Back Gauge, motorized with fine adjustment handwheel Power Ram Depth Control, motorized with fine adjustment handwheel Digital Displays for backgauge position and ram position All Steel Construction Sick 4000 Light Curtain Ram accepts standard American Tang tooling, ½” x 5/8” Space between Ram Tool Clamps allows for deep box bending Bed has slot for standard American Tang tooling Bed also has capture clamps for tooling without tang Free Gooseneck Punch and multi-opening Die for up to 90° forming in 10 gauge mild steel

SPECIFICATIONS: Working Pressure: 125 Tons Pressing Speed: Dependent on Tool Load Length of Working Table: 125.9” Hydraulic Oil Capacity: 79 Gal. Distance Between Housings: 106.2” Motor Horsepower: 10 HP Throat Depth: 12.5” Net Weight: 18,739 lbs. Stroke Adjustment of Ram: 2.36” Length: 148” Ram Travel: 5.5” Width: 64” Open Height: 15.9” Height: 101” Rapid Ram Travel Speed: 2.4”/sec. Rapid Ram Retreat Speed: 2.0”/sec. Backgauge Travel: 24”

OTHER SIZES AND MODELS AVAILABLE UPON REQUEST

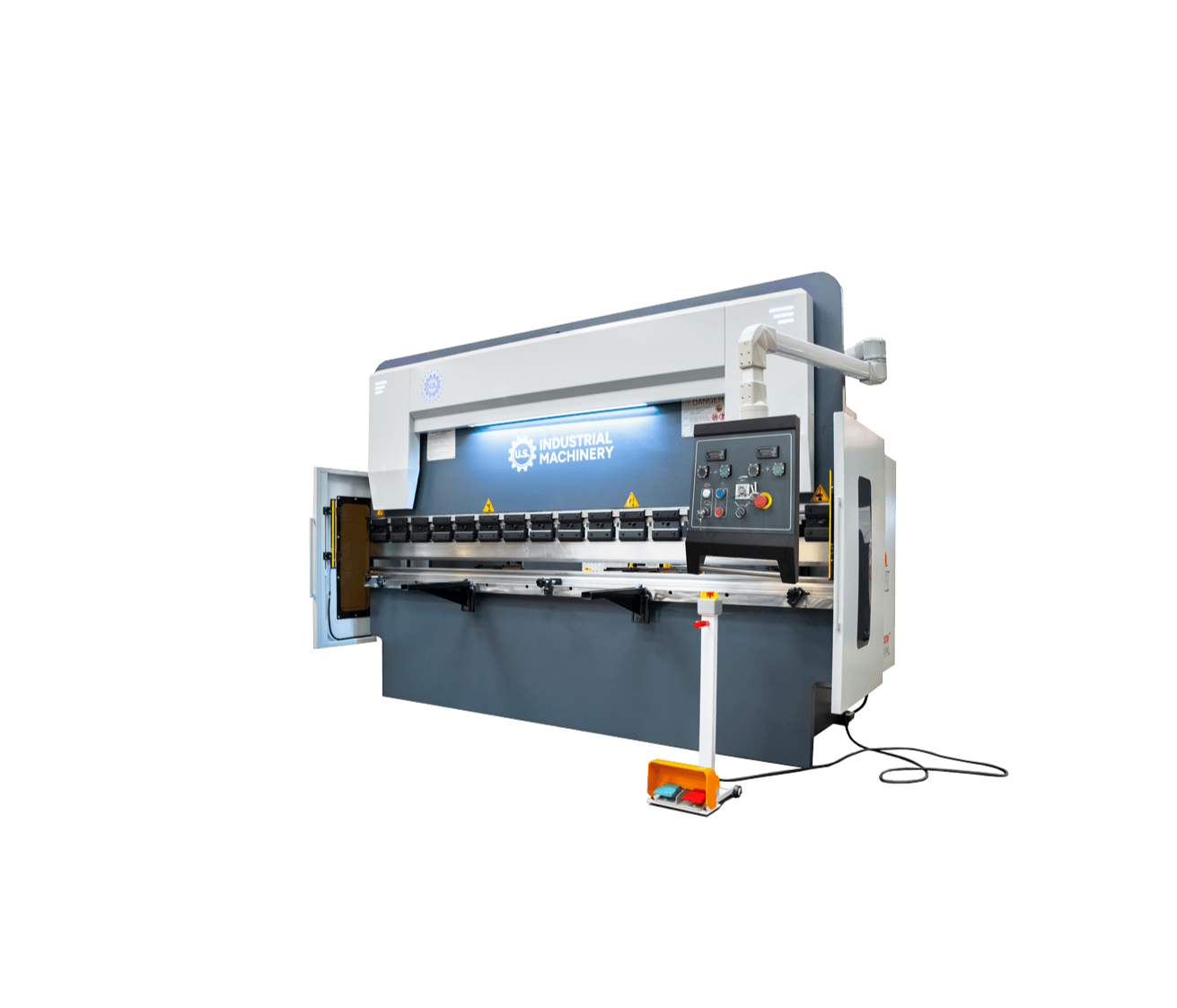

U.S. INDUSTRIAL 10' X 155 TON MANUAL BRAKE

STANDARD EQUIPMENT: (All of the following comes with the machine) Power Front Operated Back Gauge, motorized with fine adjustment handwheel Power Ram Depth Control, motorized with fine adjustment handwheel Digital Displays for backgauge position and ram position All Steel Construction Sick 4000 Light Curtain Ram accepts standard American Tang tooling, ½” x 5/8” Space between Ram Tool Clamps allows for deep box bending Bed has slot for standard American Tang tooling Bed also has capture clamps for tooling without tang Free Gooseneck Punch and multi-opening Die for up to 90° forming in 10 gauge mild steel

SPECIFICATIONS: Working Pressure: 155 Tons Pressing Speed: Dependent on Tool Load Length of Working Table: 125.9” Hydraulic Oil Capacity: 79 Gal. Distance Between Housings: 106.2” Motor Horsepower: 15 HP Throat Depth: 12.5” Net Weight: 22,046 lbs. Stroke Adjustment of Ram: 2.75” Length: 148” Ram Travel: 5.9” Width: 64” Open Height: 16.3” Height: 101” Rapid Ram Travel Speed: 2.4”/sec. Rapid Ram Retreat Speed: 2.0”/sec. Backgauge Travel: 24”

OTHER SIZES AND MODELS AVAILABLE UPON REQUEST.

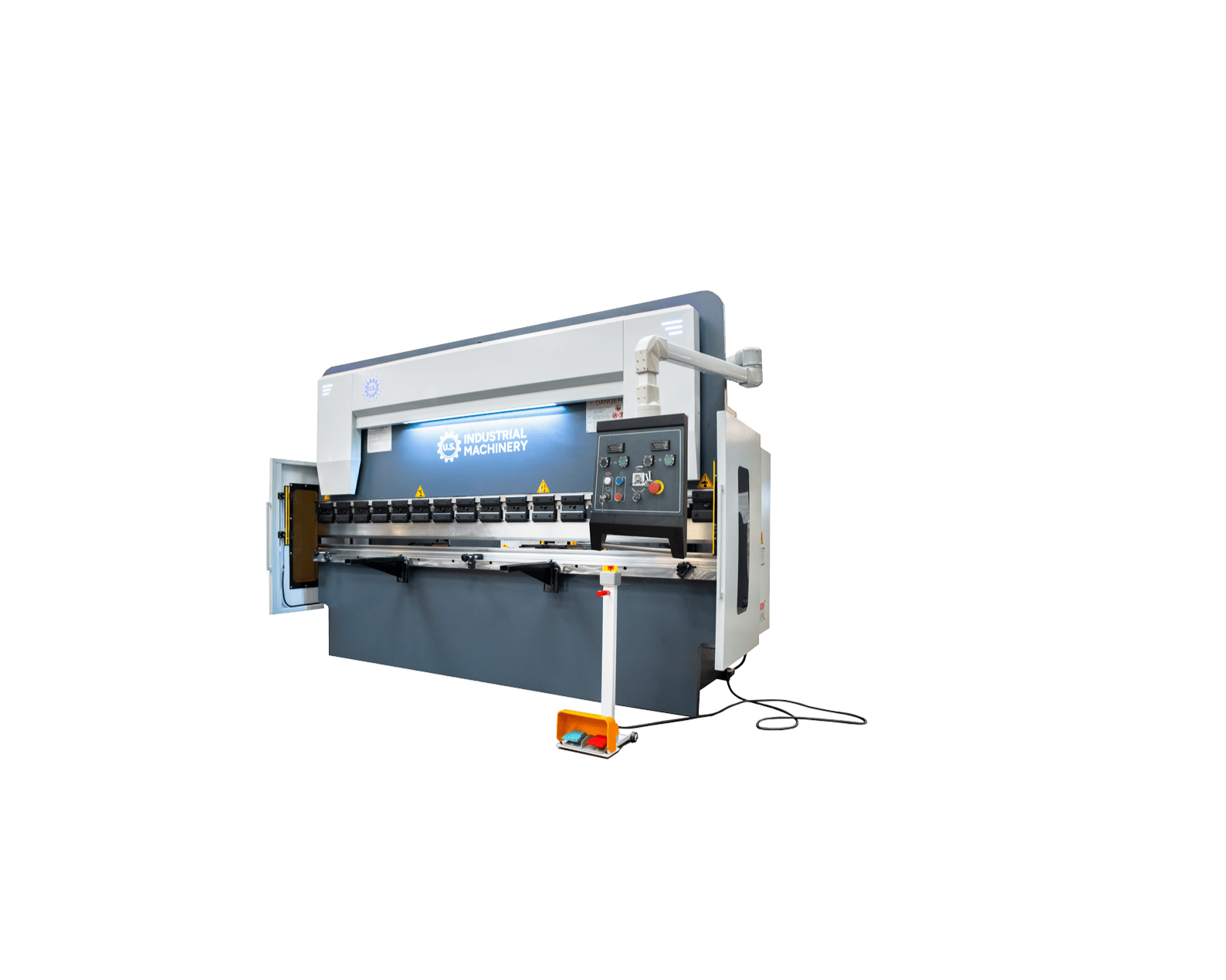

U.S. INDUSTRIAL 10' X 200 TON MANUAL BRAKE

STANDARD EQUIPMENT: (All of the following comes with the machine) Power Front Operated Back Gauge, motorized with fine adjustment handwheel Power Ram Depth Control, motorized with fine adjustment handwheel Digital Displays for backgauge position and ram position All Steel Construction Sick 4000 Light Curtain Ram accepts standard American Tang tooling, ½” x 5/8” Space between Ram Tool Clamps allows for deep box bending Bed has slot for standard American Tang tooling Bed also has capture clamps for tooling without tang Free Gooseneck Punch and multi-opening Die for up to 90° forming in 10 gauge mild steel

SPECIFICATIONS: Working Pressure: 200 Tons Pressing Speed: Dependent on Tool Load Length of Working Table: 125.9” Hydraulic Oil Capacity: 79 Gal. Distance Between Housings: 102.3” Motor Horsepower: 20 HP Throat Depth: 12.5” Net Weight: 25,357 lbs. Stroke Adjustment of Ram: 2.75” Length: 148” Ram Travel: 7.0” Width: 64” Open Height: 17.5” Height: 101” Rapid Ram Travel Speed: 2.4”/sec. Rapid Ram Retreat Speed: 2.0”/sec. Backgauge Travel: 24”

OTHER SIZES AND MODELS AVAILABLE UPON REQUEST.

Multiple unit sizes and variations available upon request.
