BAILEIGH PROFILE BENDER R-M55H

This ring roller bender runs on 220-volt single-phase power.

Bends a maximum capacity of 2.75" round tube and 2” schedule 40 pipe.

Works with 3 rolls: 1 top forming roll and 2 driven bottom rolls.

You can operate the R-M55H in 2 positions: vertical, for small rolling projects, and horizontal (on its back) for longer sections of material.

Independent, easily-movable control pedestal lets you adjust the top roll’s positioning and program stops.

Digital readout tells you the exact position of the top shaft to ensure simple repeatability for production runs.

Direct gearbox drive system delivers mighty full torque even when bending at full capacity.

Foot pedal control lets you conveniently switch between forward and reverse modes.

Variable-speed inverter allows you to adjust the rolling speed to suit you material and project.

Comes standard with roll sets that you can configure to suit many applications.

Constructed from heavy steel plate to maintain accuracy and minimize flex.

Baileigh covers this hydraulic roll bender with a 1-year parts warranty and lifetime technical support by phone.

BAILEIGH ANGLE ROLLER R-H55

This angle ring roller runs on 220-volt 3-phase power.

Bend up to 4” round tubing with a .083 wall.

3 rolls driven by 5 HP motor with direct-drive transmission.

Industrial-grade hydraulic cylinder system lets you adjust the positioning of top forming roll with the programmable control station.

Digital readout on top roll position makes each bend easily repeatable, key for those multiple-piece production runs.

Built from heavy steel plate and mounted on a fully-welded steel housing to sustain machine’s strength.

Baileigh covers this tube roller with 1-year parts warranty

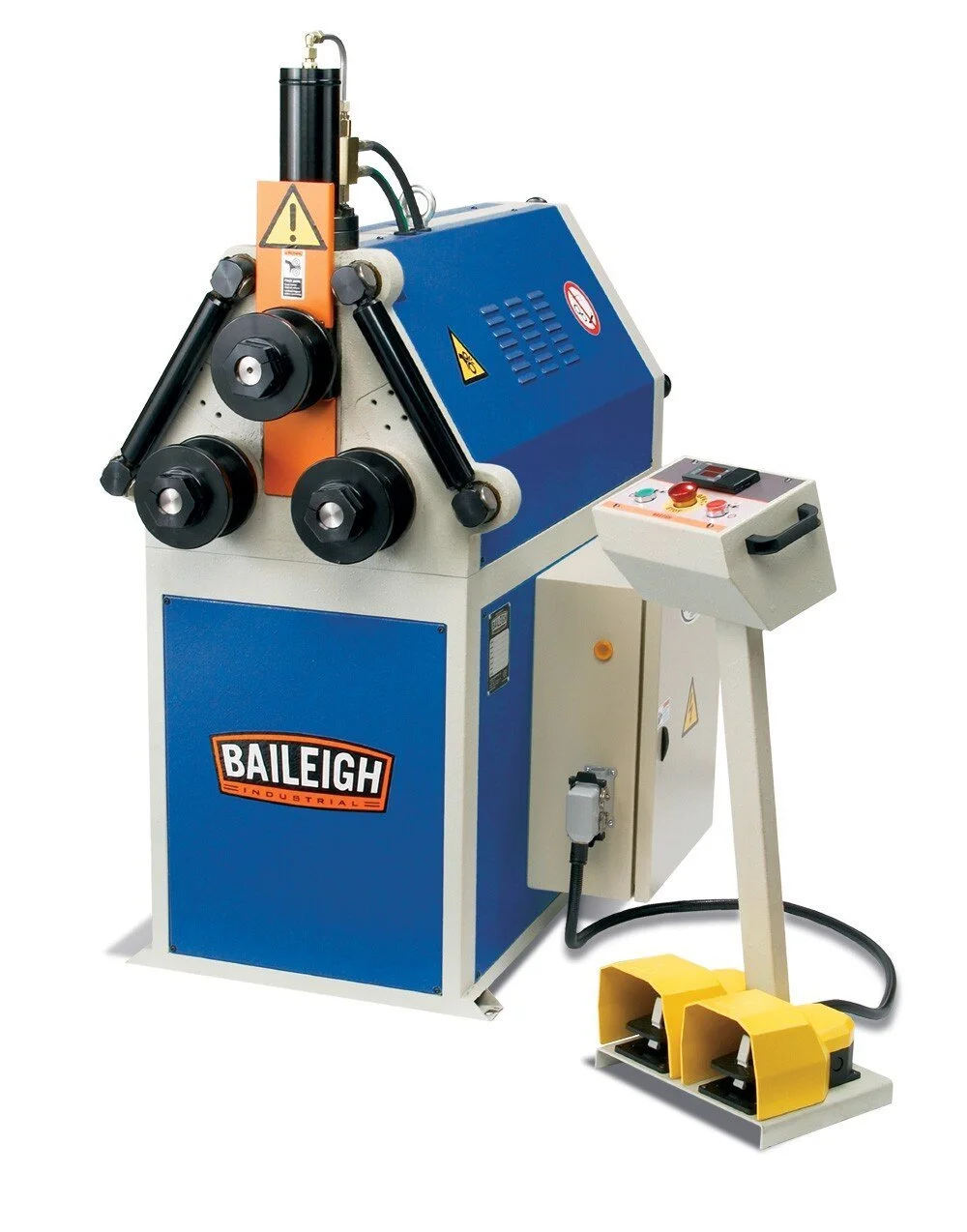

BAILEIGH HYDRAULIC ROLL BENDER R-H45

Runs on 220-volt single-phase power and will work at just about any fabrication shop or job site.

Bends up to 2” square x .120” wall tubing and 2” schedule 40 pipe, among other materials.

All 3 rolls turn on industrial motor and transmission.

Industrial-grade hydraulics power the top forming roll’s movement for seamless adjustment.

Digital readout with programmable stop controls upward and downward roll position for easy repeatability.

Siemens inverter drive enables soft start-ups to prolong motor life.

Operator podium includes foot pedal, allowing you to stop and start the machine with ease.

You can safely tip this pipe bender backward into a horizontal position when rolling larger diameters.

Fully-welded steel plate frame adds strength to the machine and minimizes flex.

Backed by a 1-year parts warranty and lifetime technical support by phone from our knowledgeable team.

BAILEIGH ABRASIVE CHOP SAW AS-350M

BAILEIGH ABRASIVE CHOP SAW AS-350M

Powerful 7.5 hp motor can slice through thin wall tubing.

Maximum capacity of 4.5” round at 90° and 4” round at 45°.

Features 14” abrasive cutoff saw blade.

Requires 220-volt 3-phase power.

Blade reaches up to 4,300 RPM seconds after you turn it on.

Saw head can miter 45° left or right.

Cuts square tubing and pipe, bar stock, and angle iron, among other materials.

6.5” maximum-width vise with a taper lock allows for fast material changes.

Cast base and head, mounted on a sturdy steel cabinet, reduce vibration and increase blade life.

Baileigh covers this abrasive cutoff saw with a 1-year warranty

BAILEIGH CIRCULAR COLDSAW CS-315EU

Accepts a 12.5” blade (included).

3.5” round tube capacity at 90°.

Miters 45° to the left and right.

Spins at 52 rpm to cut through solids, tubing, or pipe.

Perfect for cutting mild steel, but can handle other material with the proper blade.

Strong 2.5 hp motor coupled with a direct-drive gearbox, lets the blade cut the material chatter-free, increasing blade life.

Runs on 220-volt 1-phase 60Hz power.

Operate this manual saw by gradually pulling the blade head into the material and controlling it with your own strength.

European-style vise has a taper lock system for fast clamping and unclamping to increase production.

Serrated vise jaws grip the material tightly, so it won’t budge during cutting.

Vise clamps on both sides of the cut, reducing blade chatter and prolonging blade life.

Stop rod helps you easily cut repeatable lengths for production runs.

Rigid cast iron base stabilizes the machine for straight, accurate cuts.

Heavy-duty molded steel stand raises the saw to a convenient cutting height.

Powerful integrated coolant pump lubricates the blade and washes chips away.

Flood coolant system increases cut quality, makes the saw easier to handle, and makes the saw and blades last longer.

We keep replacement parts in stock for fast shipping.

Covered by a 1-year parts warranty.

BAILEIGH CS-350EU - VARIABLE SPEED CIRCULAR COLD SAW

Circular cold saw takes a 14” blade (included).

4.7” round tube capacity at 90°.

Cold saw machine cuts through solids, tubing, and pipe.

Miters 45° left and right and can slot perpendicular to the material.

Finetune the variable speed from 24 to 120 rpm to improve cut quality.

Inverter-driven motor lets you adjust the blade speed with a dial to cover most applications.

Digital readout shows the blade speed to assist with repeatability.

3 hp motor, coupled to a direct-drive gearbox, allows the blade to cut through the material chatter-free, so that blades last longer.

Runs on 220-volt single-phase power and will work in almost any shop.

European-style vise helps increase production with a taper lock system that speeds up clamping and unclamping.

Vise clamps on both sides of the cut to reduce chatter and increase blade life.

Serrated jaws provide maximum hold on the material.

Thick cast iron base, mounted on a heavy steel stand, stabilizes the saw to ensure accurate cutting for many years.

Powerful coolant pump lubricates the blade and washes metal chips away.

Flood coolant system allows for mill-like cuts, prolongs blade and saw lifespan, and reduces operator effort.

Replacement parts are in stock for fast shipping.

Covered by a 1-year parts warranty.

BAILEIGH DP-0625E DRILL PRESS

.5 hp motor requires 110 volt power and will work at any shop or site.

Belt driven head drills a maximum capacity of 5/8” steel.

5 speeds in the range from 250 to 2900 rpm to suit your application.

2-7/8" steel column eliminates flexing even when drilling at full capacity.

Rigid cast iron base and table add strength to the drill’s structure.

Includes a safety shield around the drill head to protect you.

Baileigh backs this drill press machine with a 1-year parts warranty

BAILEIGH DRILL PRESS VARIABLE SPEED DP-1000VS

2 hp motor requires 220-volt single-phase power and will work at virtually any shop or site.

Inverter-driven head drills a maximum capacity of 1” steel.

You can fine-tune the speed in the range from 150 to 3000 rpm to suit your application.

Auto-reversing tap has a tapping capacity of 5/8” steel.

Wide steel column eliminates flexing even when drilling at full capacity.

Rigid cast iron base and table add strength to the drill’s structure.

Comes standard with a coolant system, a feature that some competing companies consider an upgrade.

Includes a safety shield around the drill head to protect you, as well as a halogen light that bends to help you see the project better.

Baileigh backs this variable-speed drill press machine with a 1-year parts warranty

BAILEIGH GEAR DRIVEN DRILL PRESS DP-1000G

1.5 hp motor requires 110 volts of power and will run in any fabrication or machine shop.

Maximum capacity of up to 1” mild steel.

Transmission offers multiple speeds (125, 420, 535, and 1740 rpm) for drilling and tapping an array of different materials.

Sturdy 4" diameter column reduces flexing to ensure accurate results.

You can easily adjust the gear head up or down on the column.

Comes standard with a heavy cast iron base and adjustable table.

Includes a protective guard around the spindle for your safety.

Bright halogen work light bends to provide visibility where you need it.

Baileigh covers this drill press with a 1-year warranty

BAILEIGH METAL LATHE PL-1236E

BAILEIGH METAL LATHE PL-1236E

70 to 1,400 rpm variable speed.

Integrated gear system allows for taping, turning, and polishing.

All ways are ground and hardened to ensure long life.

Runs on 220-volt single-phase power.

Capable of standard and metric threading.

Quick-change tool post helps you save time.

3-jaw and 4-jaw chucks can hold both square and rounded materials.

Steady rest and follow rest brace the shaft and prevent wobbling to ensure high accuracy.

Facing plate lets you shape materials that are large but not long. Bolt your metal to the plate to keep it square and symmetrical.

Coolant system consists of a reservoir and pump in the base plus a hose you can point as needed.

Foot brake helps keep your shop safe.

Halogen work light comes standard.

Covered by a 1-year parts warranty.

BAILEIGH METAL LATHE PL-1236E-DRO

Recommended for small fabricators, schools, or garages.

70 to 1,400 rpm variable speed.

Integrated digital readout (DRO) helps you get repeatable results.

Quick-change tool post makes tooling changes more efficient.

Gear system allows for taping, turning, and polishing.

All ways are ground and hardened to ensure long life.

Runs on 220-volt single-phase power.

Capable of standard and metric threading.

Quick-change tool post helps you save time.

3-jaw and 4-jaw chucks can hold both square and rounded materials.

Steady rest and follow rest brace the shaft and prevent wobbling to ensure high accuracy.

Facing plate lets you shape materials that are large but not long. Bolt your metal to the plate to keep it square and symmetrical.

Coolant system consists of a reservoir and pump in the base plus a hose you can point as needed.

Foot brake helps keep your shop safe.

Halogen work light comes standard.

Covered by a 1-year parts warranty.

BAILEIGH METAL LATHE PL-1340E

BAILEIGH METAL LATHE PL-1340E

8 spindle speeds, from 70 to 2,000 rpm.

Runs on 220-volt single-phase power.

Digital readout (DRO) comes hooked up and helps with repeatability.

Quick-change tool post saves you the trouble of screwing and unscrewing tool sets.

Precision-ground and hardened ways offer years of tight tolerances.

Can cut both metric and standard threads.

3-jaw and 4-jaw chucks can hold square and rounded materials.

Face plate lets you bolt large but not long pieces in place.

Steady rest and follow rest brace the shaft and help prevent wobbling.

Foot brake makes it easy to stop the machine in an emergency.

Integrated coolant system extends the lathe’s lifetime of use.

Halogen work light comes standard.

Rigid castings ensure smooth chatter-free cuts and prolong tooling life.

Covered by a 1-year parts warranty

BAILEIGH CORNER NOTCHER SN-F11-AN

The SN-F11-AN pneumatic corner notcher from Baileigh Industrial is the great machine for making perfect corners in sheet metal. The SN-F11-AN corner notcher has an 11 gauge mild steel capacity, so it can make quick work of most any job. And like its hydraulically operated brother, the SN-F09-MS, the SN-F11-AN sheet metal notcher has blades that are fixed at 90°, ensuring a perfect notch every time. An oversized table measuring 18” x 23.5” includes table guides, standard, to make production notches.

The 5” blades on the SN-F11-AN corner notcher can be resharpened many times for even more life and cost savings. The SN-F11-AN air operated sheet metal notcher can run off of any air compressor that can put out between 90 and 115 PSI, which should allow this great tool to be used anywhere. An operator controlled foot pedal controls the notching action on the SN-F11-AN. At an operating pressure of 115 PSI the SN-F11-AN is capable of producing 50 strokes a minute with reduced stroke length.

BAILEIGH SHEET METAL CORNER NOTCHER SN-F16-FN

BAILEIGH SHEET METAL CORNER NOTCHER SN-F16-FN

Notching corners is a staple of any fabrication shop. Good clean notches are the difference between a great product and a not so great one. The SN-F16-FN sheet metal corner notcher is an economical way to make perfect 90 degrees corners in mild steel sheet metal up to 16 gauge. The SN-F16-FN is very easy to use, because of its spring assisted shear mechanism. Just stomp on the foot pedal to produce clean crisp notches.

This 90 degree fixed sheet metal notcher will produce notches up to 3” x 3”. All sideways are adjustable and have gibs built in for wear. There are also table stops for fine-tuning the notch. This machine is built to last. For more information on the Baileigh SN-F16-FN manual corner notcher contact a Baileigh Industrial representative today

BAILEIGH MANUAL CORNER NOTCHER SN-F16-HN

The SN-F16-HN manual corner notcher is a high quality cast iron sheet metal notcher perfect for any garage or sheet metal shop. The cutting angle is fixed at 90 degrees and can notch up to 6" x 6" in one manual stroke. For your safety we have included a blade guard to save your fingers.

Because of the high quality components used to make the SN-F16-HN, the finished notches are extremely clean and have burr free edges. The SN-F16-HN sheet metal notcher includes a sturdy floor stand, freeing up valuable worktop space. Take it off the stand and you have a machine that is very compact and can be easily moved from jobsite to jobsite. Adjustable guides on the oversized table allow for accurate repeatable notches.

Contact a Baileigh Industrial representative for more information on the SN-F16-HN manual corner notcher today.
